Turnkey cleanroom construction simplifies the process of building controlled environments by offering an all-in-one solution. A single provider handles everything - from design and engineering to construction, testing, and certification - ensuring efficiency and reducing risks. Here's what you need to know:
Turnkey solutions streamline cleanroom projects, ensuring precision, compliance, and cost control from start to finish.

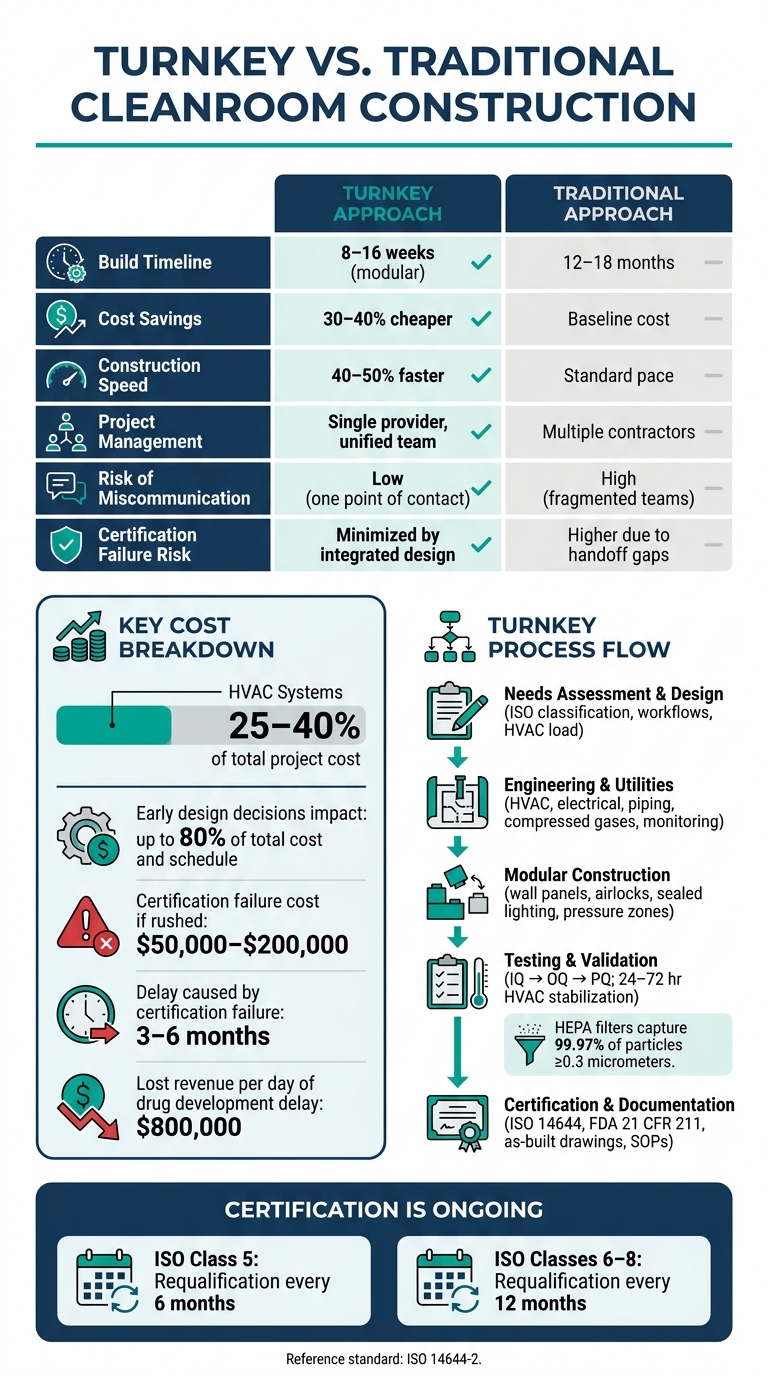

Turnkey vs. Traditional Cleanroom Construction: Cost, Time & Key Deliverables
Turnkey cleanroom construction offers a fully integrated solution, bringing together engineering and infrastructure to deliver a cleanroom that's ready to perform from the start. Knowing what’s included can help you ask the right questions and avoid unexpected issues.
In a turnkey project, design and engineering are seamlessly integrated from the beginning. It all starts with a comprehensive needs assessment to determine the required ISO classification, personnel workflows, equipment layout, and specific temperature and humidity requirements. From there, detailed flow diagrams are created to map the movement of people, products, waste, and equipment. This process helps define the placement of airlocks, gowning rooms, and clean/dirty separation zones.
Mechanical engineering plays a critical role, focusing on HVAC load calculations, HEPA/ULPA filtration requirements, airflow patterns (laminar or turbulent), and pressure differential zoning. Architectural considerations include selecting materials like modular wall and ceiling panels, cleanroom-grade flooring, and flush-mounted doors and windows. Each design choice is made with qualification processes (DQ, IQ, OQ, and PQ) in mind. These decisions directly influence the development of a reliable HVAC system.
"The HVAC (Heating, Ventilation, and Air Conditioning) system is the heart of the cleanroom. This system creates and maintains the specified level of air purity, making it one of the most critical parts of the project." - Labs USA
The HVAC system is essential for maintaining cleanroom conditions and preventing contamination. Turnkey providers handle every aspect of its design, including air handling units, ductwork, HEPA filters (capable of capturing 99.97% of particles as small as 0.3 micrometers), and Fan Filter Units (FFUs) integrated into ceiling grids. Pressure differentials are carefully calculated to ensure clean areas maintain positive pressure relative to adjacent spaces, preventing cross-contamination.
Modern control systems ensure precise conditions, maintaining temperatures within ±2°C (about ±3.6°F) and humidity levels within ±10%. With HVAC systems typically accounting for 25% to 40% of the total project cost, getting the design right from the start is critical.
A cleanroom’s functionality depends on its supporting utilities. These systems are essential to maintaining operational integrity and compliance. Key utility categories include:
| Utility Category | Components | Function |
|---|---|---|
| Electrical | HVAC power, equipment circuits, LED lighting | Powers environmental controls and production equipment |
| Process Piping | Purified water, Water for Injection (WFI), clean steam | Supports aseptic processing and cleaning operations |
| Compressed Gases | Nitrogen, specialty gases, compressed air | Needed for equipment operation and inerting |
| Monitoring | Particle counters, pressure sensors, automated alarms | Ensures continuous real-time regulatory compliance |
| Access Control | Air showers, pass-through chambers, interlocking doors | Prevents cross-contamination during transfers |
These integrated systems ensure the cleanroom operates effectively and complies with performance standards from the moment it’s operational.
Once the design and utilities are finalized, the physical construction begins. The way this phase is executed plays a critical role in determining whether the cleanroom passes certification on the first attempt.
The construction process starts by isolating the build area with barriers and HVAC filtration to prevent dust and debris from spreading to the rest of the facility. Modular wall panels, ceiling grids, and easy-to-clean flooring are then installed, followed by airlocks, pass-through cabinets, interlocked doors, and sealed LED lighting fixtures. These elements work together to maintain pressure zones and avoid particle traps.
One big advantage of modular systems is the speed of construction. Modular cleanrooms can be built 40% to 50% faster than traditional methods, which helps save time and reduce risks of contamination. Using specialized cleanroom installation crews further minimizes contamination risks and avoids costly rework. After construction, the cleanroom undergoes thorough testing to ensure it’s ready for operation.
Validation involves a structured process to ensure the cleanroom meets all operational requirements:
Before formal testing begins, HVAC systems run continuously for 24–72 hours to stabilize the environment. The following tests are then conducted to evaluate critical performance metrics:
| Testing Procedure | Purpose | Standard |
|---|---|---|
| Particle Count Test | Verifies airborne particle concentrations | ISO 14644-1 |
| HEPA Leak/Integrity Test | Ensures filters are sealed with ≤0.01% particle penetration | cGMP / ISO 14644-3 |
| Airflow Velocity/Uniformity | Validates laminar airflow and required air change rates | ISO 14644-1 |
| Pressure Differential Test | Confirms 10–15 Pascals between clean and adjacent zones | FDA / GMP |
| Room Recovery Test | Measures time to return to baseline cleanliness after a disturbance | ISO 14644-3 |
"Filter leak testing is a critical verification step... Even a minor leak - caused by gasket failure, frame distortion, sealant defects, or media damage - can compromise ISO 14644 cleanliness." - Kjeld Lund, 14644.dk
Skipping or rushing through these steps can be costly. Certification failures due to design or testing mistakes can lead to expenses ranging from $50,000 to $200,000 and delays of 3 to 6 months. Successfully completing these tests ensures the cleanroom meets all third-party certification requirements.
Certification is carried out by accredited third-party organizations that independently review documentation and oversee testing. In the U.S., cleanrooms must comply with FDA 21 CFR 211, while internationally, the ISO 14644 standards govern particle control.
"Regulatory agencies like Health Canada and the FDA expect precise environmental controls, and certification bodies require rigorous documentation proving your facility meets ISO 14644 standards." - ACH Engineering
A well-executed turnkey project delivers a comprehensive documentation package, including as-built drawings, IQ/OQ/PQ validation protocols, calibration certificates, and Standard Operating Procedures (SOPs). As ACH Engineering explains, "Strong documentation turns an inspection from a liability into a routine confirmation".
It’s important to note that certification isn’t a one-and-done process. According to ISO 14644-2, requalification is required every 6 months for ISO Class 5 cleanrooms and every 12 months for ISO Classes 6 through 8.
Once a cleanroom is certified, there’s room to expand its functionality and enhance its safety features. By incorporating targeted add-ons and upgrades, you can adapt the cleanroom to meet evolving needs while maintaining precision and safety standards.
Modular cleanrooms are designed with scalability in mind. Prefabricated POD systems offer self-contained units that can be easily reconfigured, expanded, or relocated as operations grow. These systems feature pre-finished wall panels - available in aluminum, stainless steel, or FRP with insulated cores - that snap together on-site, eliminating the need for traditional construction from scratch. This approach significantly shortens project timelines, with modular cleanrooms typically completed in 8 to 16 weeks, compared to the 12 to 18 months required for traditional stick-built designs.
For those planning future expansions, it’s smart to include 20–30% extra capacity in HVAC and utility systems during the initial design phase. This early investment supports scalability and ensures compliance with cleanroom standards as needs evolve.
"Traditional stick-built cleanrooms often introduce delays, inconsistencies, and increased labor costs." - G-CON
Facilities handling hazardous drugs or high-potency active pharmaceutical ingredients (HPAPIs) need more than a standard cleanroom setup. Negative pressure environments, as required under USP 800, ensure that contaminants remain confined within the room rather than spreading outward. Unlike positive-pressure cleanrooms, these spaces rely on precise pressure cascade control to prevent hazardous material migration between zones.
Segregated workflows further enhance safety by establishing unidirectional traffic patterns. Materials flow in one direction - from raw inputs to finished products - while personnel follow strict gowning sequences, moving from ISO 8 to ISO 5 zones. Specialized equipment, such as VHP (Vaporized Hydrogen Peroxide) isolators, biological safety cabinets, and weighing or dispensing booths, provides targeted containment at critical points. These features need to be integrated into the facility’s design from the outset to ensure both safety and efficiency. Together, these measures create a foundation for advanced monitoring and automation.
Integrating an Environmental Monitoring System (EMS) with a Building Management System (BMS) offers real-time oversight of key metrics like pressure differentials, temperature, humidity, and particle counts across all zones. Both FDA 21 CFR 211.42 and EU GMP Annex 1 mandate continuous, documented evidence of controlled conditions.
Automated data logging removes the risk of manual errors, simplifies inspections by turning routine checks into documented confirmations, and enables predictive maintenance. By monitoring particle count trends, facilities can address issues before they lead to certification failures. Considering that a single day of delay in drug development can result in $800,000 in lost sales, early detection systems quickly justify their cost. Increasingly, turnkey providers are embedding monitoring sensors directly into modular wall panels and utility raceways during factory fabrication, making these systems truly plug-and-play on-site.
Turnkey cleanroom construction simplifies the complexities that often derail mission-critical projects by integrating design, testing, and construction into one seamless process. When a single provider oversees everything - from the initial concept to final certification - it ensures efficiency and reduces the likelihood of errors at every stage. This single-source accountability is the backbone of the turnkey approach. As Labs USA explains:
"A turnkey approach reduces risk, shortens timelines by 30–40%, and guarantees the final cleanroom meets specific standards like ISO 14644 and cGMP."
One of the standout advantages of turnkey projects is their ability to significantly compress timelines compared to traditional construction methods. This efficiency comes from a unified team working in parallel: off-site fabrication happens simultaneously with on-site preparation, eliminating unnecessary delays. For industries like pharmaceuticals and biotech, where timing is critical, this streamlined process is not just helpful - it’s essential.
Turnkey construction also ensures compliance and scalability from the very beginning. Early decisions account for up to 80% of a project’s cost and schedule. By embedding ISO 14644 and cGMP requirements into the design phase, providers avoid the risks and expenses of retrofitting later. For a detailed exploration of how integrated construction project delivery models reduce risk, this approach stands out by maintaining consistency and minimizing potential pitfalls.
Additionally, modular systems offer flexibility for future needs - they can be reconfigured, expanded, or relocated, protecting your investment. Building in 20–30% extra HVAC and utility capacity upfront further prevents costly upgrades down the line. As Jeff Masten, Chief Operating Officer at Theragent, shared:
"We chose AES because of their experience and this new custom fit design. It allowed us to accomplish our state-of-the-art GMP manufacturing facility with proper workflows and with all the ancillary support rooms that we needed."
The primary distinction lies in how they're built, their adaptability, and how quickly they can be set up. Modular cleanrooms are made with prefabricated parts that are assembled on-site, making the installation process faster. They’re also easier to scale or reconfigure as needs change. On the other hand, stick-built cleanrooms use traditional materials like drywall. While they take longer to construct and aren't as adaptable, they’re ideal for permanent setups requiring extensive customization. If speed and flexibility are priorities, modular is the way to go. For large, fixed facilities, stick-built is a better fit.
ISO 14644 and FDA validation processes are often overseen by independent auditors or third-party certifiers. These experts handle the testing and certification needed to confirm that a cleanroom complies with industry standards and regulatory requirements.
To ensure everything runs smoothly and meets necessary standards, the documentation package should include the following:
These documents are essential for proper system operation, meeting regulatory standards, and ensuring ongoing maintenance.
