Building Automation Systems (BAS) are centralized networks that manage critical building systems like HVAC, lighting, security, and access control. Acting as a building’s “brain,” BAS improves energy efficiency, ensures system reliability, and supports regulatory compliance. Here's what you need to know:
BAS is not just about automation; it’s about optimizing comfort, safety, and energy use through intelligent control systems.
Building Automation Systems (BAS) are structured into four distinct layers, each playing a specific role in the system's operation. Here's a quick breakdown:
| Layer | Primary Components | Key Functions |
|---|---|---|
| Application | Workstations, Cloud, Mobile Apps | User Interface (UI), Analytics, Reporting, Data Visualization |
| Supervisory | Network Controllers, Servers | Global Scheduling, Alarm Routing, Data Aggregation |
| Field Controller | DDC, PLC, Unitary Controllers | Local Logic Execution, PID Loops, Autonomous Operation |
| I/O / Field | Sensors, Actuators, VFDs | Data Collection (e.g., Temperature, CO₂), Physical Action (e.g., Valves, Dampers) |
One critical design principle is ensuring that field controllers maintain their local sequences even if the supervisory or application layers go offline. This self-reliance is especially crucial in environments like hospitals or data centers, where uninterrupted operation is non-negotiable. For more details on how this applies to complex setups, check out the data center construction guide.
As a rule of thumb, size the I/O layer to include 1–2 points per 100 square feet, with an additional 15–20% spare capacity for future needs [1][2].
The success of this layered architecture hinges on robust communication protocols that enable seamless system integration.
BAS layers communicate using industry-standard protocols, with BACnet (ASHRAE 135) leading the pack - used by about 80% of systems [7]. At the field level, BACnet MS/TP operates on RS-485 networks with speeds ranging from 9.6 to 76.8 kbps, while supervisory layers use BACnet/IP over Ethernet at speeds of 10/100/1000 Mbps [2]. For devices like power meters and variable frequency drives (VFDs), Modbus RTU is often employed via protocol gateways [2].
The industry is also shifting toward BACnet/SC (Secure Connect), which incorporates TLS 1.3 encryption and X.509 certificates [2][6]. This upgrade enhances security, making BAS more compatible with modern IT infrastructure and cloud-based systems. To ensure reliability in mission-critical environments, network utilization should stay below 30% on average and under 70% during peak traffic [6].
"The goal of BAS is not simply 'automation' but rather finding the optimal balance among comfort, safety, and energy efficiency through data-driven intelligent control." - ControlsHub [3]
These communication standards allow BAS to manage diverse systems efficiently, which leads us to how BAS integrates with other building systems.
The real power of a BAS comes from its ability to coordinate multiple systems rather than managing them individually. For example, a single occupancy sensor can simultaneously adjust HVAC settings, activate lighting, and send alerts to security teams [2][7].
Integration strategies depend on the system type. HVAC systems often use native BACnet communication, while fire and life safety systems typically connect via a High-Level Interface (HLI). This approach ensures that life-safety operations remain independent while still sharing critical alarm data with the BAS [5]. Similarly, energy meters often use Modbus to provide real-time data on kilowatt-hour usage and peak demand, which is then displayed on supervisory dashboards.
This level of integration creates a unified operator interface, allowing facilities managers to oversee HVAC, lighting, security, and energy systems from a single platform. Such cross-system coordination is essential for maintaining reliability in mission-critical facilities.
At its core, a Building Automation System (BAS) depends on three main hardware elements: sensors, controllers, and actuators. Sensors are responsible for monitoring conditions such as temperature, CO₂ levels, humidity, and pressure. They convert this information into electrical signals - commonly 0–10V or 4–20mA. For instance, temperature sensors typically have an accuracy of about ±1°F. Controllers, often Direct Digital Controllers (DDCs), process the data received from sensors, compare it to predefined setpoints using PID logic, and issue commands to actuators. These actuators, which include damper motors, valve actuators, and variable frequency drives (VFDs), then physically adjust the building's equipment as needed.
This setup creates a continuous feedback loop. For example, if a CO₂ sensor detects rising levels in a conference room, the controller calculates the required increase in fresh air. It then signals a damper actuator to adjust airflow until the desired CO₂ level is achieved.
"A Building Automation System (BAS) represents the central nervous system of a modern building, integrating and managing various interconnected systems." - HVACProSales
To ensure smooth operation, follow these tips: maintain a minimum distance of 6 inches between low-voltage signal cables and power cables to avoid electrical interference, and calibrate critical sensors like CO₂, pressure, and temperature sensors at least annually for accurate readings.
While hardware forms the backbone, BAS software transforms sensor inputs into actionable controls and insights.
BAS software plays a crucial role by turning raw sensor data into useful and actionable information. Some of its key features include:
"A building that has been monitored for even 90 days has something no amount of contractor speculation can replace: a record of what actually happened." - Nicholas Napp, FractionalBAS [4]
For best results, aim to gather at least 60–90 days of trend data before making significant decisions about capital equipment upgrades. These software features not only enhance system responsiveness but also contribute to energy efficiency.
A properly configured BAS can lower energy use by 15% to 30%, offering noticeable financial benefits. Effective energy and demand management are particularly important in environments where efficiency and cost control are critical. Key strategies for achieving energy savings include:
| Strategy | Energy Savings Potential | Requirement |
|---|---|---|
| Night setbacks & wider deadbands | 7.8% | Adjust schedules and setpoints |
| Shortened HVAC schedules | 7.1% | Use occupancy data |
| Demand Control Ventilation (CO₂) | 7.1% | CO₂ sensors with ventilation integration |
| Optimal start/stop | 5.9% | Access to temperature data and controls |
| VAV damper adjustments | 3.1% | Airflow sensors and damper control |
Energy savings estimates are based on industry data [4].
Demand Control Ventilation (DCV) is especially effective in spaces with fluctuating occupancy levels. Instead of maintaining a constant ventilation rate, CO₂ sensors provide real-time data on fresh air requirements based on actual occupancy. This reduces unnecessary HVAC loads. Additionally, automated load shedding during peak periods helps cut energy consumption and demand charges, further enhancing cost efficiency.

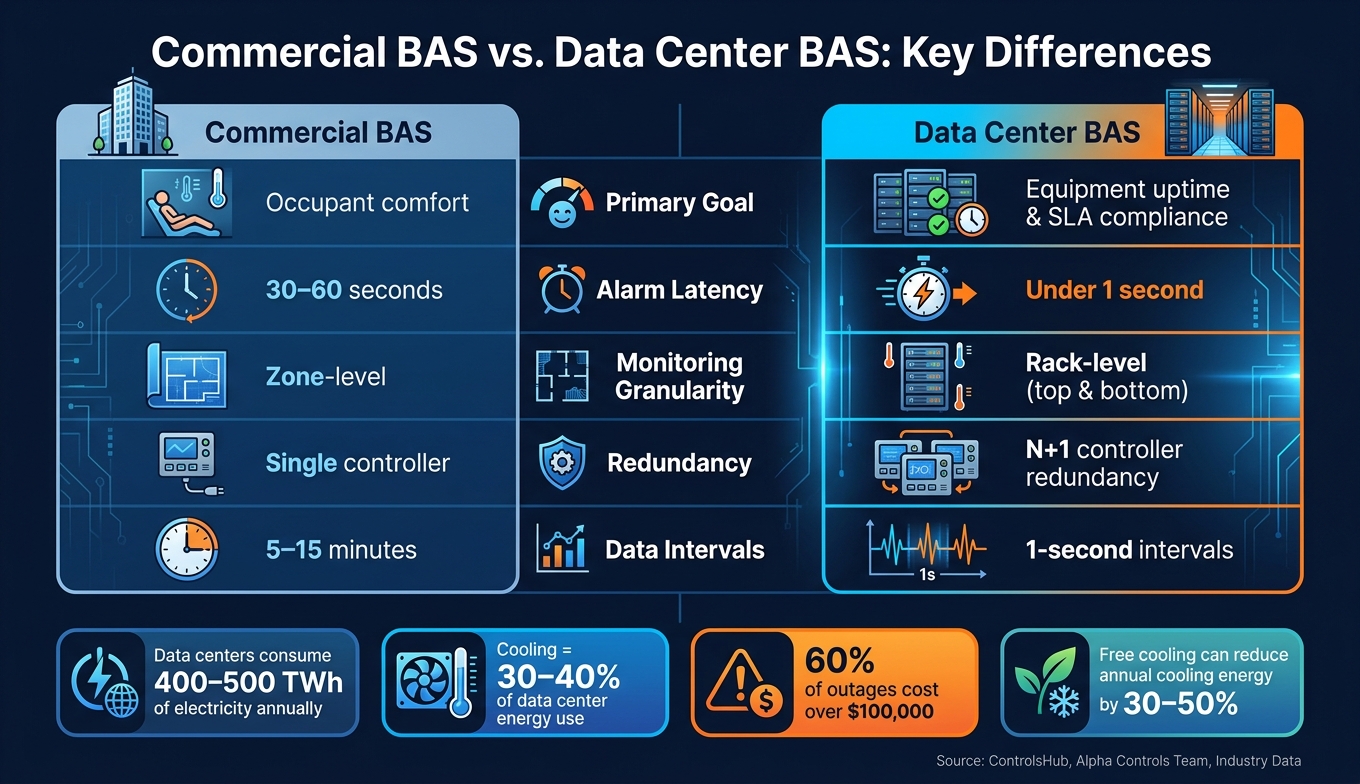

Commercial BAS vs. Data Center BAS: Key Differences
When it comes to mission-critical facilities, energy and demand management are not just priorities - they're necessities. A single failure in these environments can lead to financial losses in the hundreds of thousands or even put lives at risk. By leveraging the architecture and functions outlined earlier, Building Automation Systems (BAS) prove indispensable in facilities like data centers, healthcare campuses, and advanced manufacturing plants. Let’s dive into how BAS is applied in these high-stakes settings.
Data centers are power-hungry giants. Globally, they consume an estimated 400–500 TWh of electricity annually, with cooling alone accounting for 30–40% of their energy use. With high-density racks generating 10–50 kW each, cooling failures can lead to thermal runaway in just minutes. The stakes are high - 60% of outages cost over $100,000, and 15% exceed $1 million.
This is why BAS in data centers operates on a completely different level compared to standard commercial systems:
| Feature | Commercial BAS | Data Center BAS |
|---|---|---|
| Primary Goal | Occupant comfort | Equipment uptime & SLA compliance |
| Alarm Latency | 30–60 seconds | Under 1 second [8] |
| Monitoring Granularity | Zone-level | Rack-level (top & bottom) [8] |
| Redundancy | Single controller | N+1 controller redundancy [8] |
| Data Intervals | 5–15 minutes | 1-second intervals [8] |
A properly configured BAS can automatically switch to free cooling (economizer mode) when outdoor wet-bulb temperatures drop below 54–59°F (12–15°C), reducing annual cooling energy consumption by 30–50% [9]. Integration with CRAC (Computer Room Air Conditioning) units via protocols like BACnet or Modbus also prevents costly inefficiencies, such as simultaneous heating and cooling.
"A standard commercial BMS configured for office comfort is the wrong tool for a data centre." - Alpha Controls Team [9]
In hospitals and pharmaceutical plants, BAS plays a critical role in maintaining precise conditions for temperature, humidity, pressurization, and air changes per hour (ACH). These factors are especially vital in areas like operating rooms, sterile processing units, and isolation rooms.
Take the Cortellucci Vaughan Hospital, for example. By implementing a Johnson Controls BAS, the hospital achieved impressive results: a 44% reduction in natural gas consumption, a 19% drop in overall energy use, and a 28% decrease in greenhouse gas emissions [10]. It’s no surprise that over 80% of North American hospitals rely on BAS solutions from major providers like Johnson Controls [10].
Beyond energy savings, BAS platforms ensure compliance with strict regulations. They create electronic records and time-stamped audit trails, which are essential for meeting FDA and other regulatory standards. Features like Mean Kinetic Temperature (MKT) reporting help pharmaceutical teams verify proper storage conditions for sensitive products. Additionally, BAS-driven environmental monitoring can improve response times to temperature issues by 87%, compared to manual or fragmented systems [11].
"In today's highly regulated pharmaceutical, healthcare, and life science environments, maintaining precise environmental conditions isn't merely good practice - it's essential for regulatory compliance, product integrity, and patient safety." - Hakim Rouab, ATEK Team [11]
This example highlights how BAS not only drives energy efficiency but also ensures compliance with critical regulations, safeguarding both patient safety and product quality.
Manufacturing plants and energy infrastructure facilities also depend heavily on BAS to maintain operational reliability on a large scale. Whether it’s a semiconductor fab or a power generation facility, these environments require stable conditions for temperature, humidity, and air quality to protect both equipment and product integrity.
BAS excels here by enabling predictive maintenance. Sensors track metrics like current draw, pressure, and vibration, feeding data into analytics platforms. This proactive approach can cut maintenance costs by 10–25% and significantly reduce unplanned downtime [12]. For facilities where downtime isn't an option, BAS systems often incorporate Level 3 and Level 4 redundancy, including hot standby controllers and N+1 configurations, ensuring uninterrupted operation even if a primary controller fails [6].
Another key advantage is the use of open protocols like BACnet/IP, which allow facilities to integrate equipment from multiple vendors. This flexibility is crucial for operations that span decades, as it prevents facilities from being locked into proprietary ecosystems while keeping pace with evolving technology [13][14].
The success of a Building Automation System (BAS) hinges on the groundwork laid during its design phase. Early decisions can determine whether the system operates smoothly or requires costly fixes down the line. In mission-critical facilities, this difference could mean seamless operations versus months of troubleshooting. For those involved in delivering these systems, understanding the relationship between workforce planning and project execution is crucial.
A clear Owner’s Project Requirements (OPR) document is the cornerstone of an effective BAS. This document outlines exactly what the system must achieve - everything from energy efficiency goals and indoor air quality standards to alarm priorities and integration with other building systems. It’s the blueprint before any equipment is purchased.
From the OPR, the design team creates the Basis of Design (BOD). This document translates the project’s goals into technical specifications, such as network topology, protocol selection (typically BACnet/IP as per ASHRAE 135), and redundancy strategies. By locking in these decisions early, costly mid-project changes can be avoided.
Another critical step is requiring the BAS subcontractor to submit a complete points list before programming begins. This list should include future-proofing measures, such as spare capacity: 15–20% for analog I/O, 25% for binary I/O, and 30% for program memory. Cybersecurity considerations also need to be addressed upfront, as retrofitting security measures later can be both challenging and expensive.
"A BAS scope that does not define system architecture, integration requirements, points list, and commissioning responsibilities will result in control systems that cannot communicate with mechanical equipment." - Provision Trade Scope Guide [13]
Once the design requirements are set, the focus shifts to ensuring these standards are met during installation and operation.
Commissioning ensures that the system performs as intended, bridging the gap between design and real-world functionality. This process involves three critical stages:
These steps are especially important in mission-critical environments, where downtime isn’t an option. Rushing or skipping any of these phases can lead to expensive issues later. In fact, commissioning identifies 70–90% of installation defects before occupancy [15]. Properly commissioned systems also experience 15–30% fewer maintenance calls in their first three years. The financial benefits are clear, with a typical return on investment ranging from 4:1 to 10:1 over the building’s lifecycle [15].
"Commissioning is the point where assumptions meet reality, where control logic is tested against real loads, real schedules, and real human behavior." - Howard Williams, Associate Editor, Electricity Forum [17]
One often-overlooked but vital step is ensuring the BAS contractor provides IP address allocation and VLAN configuration details to the IT department at least 60 days before commissioning begins. Network-related delays are a frequent - and avoidable - source of commissioning setbacks [13].
Even the most meticulously designed and commissioned BAS will falter without the right team to execute and manage it. For mission-critical projects, the stakes are high, and the talent must match. These projects require skilled professionals such as Commissioning Authorities (CxA), experienced project managers, and MEP specialists to handle the technical complexities.
However, finding qualified candidates for these roles is no small feat. Roughly 85% of applicants for specialized mission-critical positions are screened out due to insufficient qualifications [16]. Moreover, filling senior roles often takes 90 days or more [16]. To avoid delays, sourcing talent should begin 6 to 12 months before mobilization, not after contracts are finalized.
"Mission-critical isn't a marketing word - it's a description of what the build cannot afford to get wrong." - iRecruit.co [16]
Specialized firms like iRecruit.co focus on identifying candidates for roles in data centers, healthcare, advanced manufacturing, and infrastructure. Their pre-screening process ensures that only qualified professionals reach hiring teams, helping owners and construction managers navigate a competitive labor market. This approach shortens hiring timelines and reduces the risk of placing unqualified individuals in roles where precision is paramount.
This article highlighted the essential role Building Automation Systems (BAS) play in mission-critical facilities. Acting as the operational backbone, a BAS ensures real-time monitoring and automated controls, which are vital for maintaining environmental conditions and extending the lifespan of critical equipment. Facilities like data centers, healthcare campuses, and advanced manufacturing plants rely heavily on this technology to maintain stability and efficiency.
What makes BAS stand out is its ability to integrate seamlessly across mechanical, electrical, and IT systems - a level of integration unmatched in commercial construction projects [13]. However, the system's success hinges on skilled professionals who can design, commission, and manage it effectively, as outlined in the earlier sections.
The complexity of BAS requires more than just advanced technology; it demands the expertise of commissioning authorities, MEP engineers, and BAS programmers. These professionals are essential for bridging the gap between traditional trades and the sophisticated demands of modern systems [18]. Without their input, even the best-designed BAS can fall short, leading to gaps in scope and costly change orders.
For project owners and construction managers, assembling the right team early in the process is as critical as selecting the right equipment. Companies like iRecruit.co specialize in connecting mission-critical projects with pre-qualified professionals, helping teams avoid the risks and delays that come with last-minute hiring in a competitive market.
When implemented correctly and supported by the right expertise, a BAS not only ensures smooth facility operations but also prolongs equipment lifespan by minimizing mechanical wear and tear [19].
A Building Automation System (BAS) and a Building Management System (BMS) essentially describe the same technology. These systems serve as a centralized hub to monitor and manage a building's HVAC, lighting, electrical, and mechanical systems. The key difference lies in terminology: BAS is the term predominantly used in North America, while BMS is more commonly recognized in Europe. Regardless of the name, both systems focus on improving occupant comfort, streamlining operations, and reducing energy consumption through automation.
A BAS points list details every input and output point that the system tracks and manages. It includes field devices such as temperature sensors, humidity sensors, CO2 sensors, and occupancy sensors. Additionally, it encompasses control components like valve actuators, damper actuators, relays, and variable frequency drives. The list also accounts for metering points and system status indicators, which are essential for monitoring, triggering alarms, and conducting trend analysis. This ensures the hardware is appropriately sized and seamlessly integrated.
To protect a Building Automation System (BAS) within an IT network, start with network segmentation. Use routers or firewalls to keep the operational technology (OT) network separate from the enterprise IT network. Incorporate VLANs for logical isolation, and enforce access control lists (ACLs) to limit communication to only what’s necessary. BAS systems should never have direct internet access. Instead, opt for secure remote access solutions like VPNs paired with multi-factor authentication, avoiding open inbound ports altogether.
