A Building Management System (BMS) is a centralized platform combining hardware and software to monitor and control essential building systems like HVAC, lighting, power distribution, and security. It automates operations, optimizes energy use, and ensures reliability, making it indispensable for facilities like data centers that demand high uptime and efficiency.
Key Features of BMS:
Why It’s Crucial for Data Centers:
Considerations When Implementing BMS:
BMS transforms building operations by improving efficiency, reliability, and sustainability, especially in environments where downtime is costly.

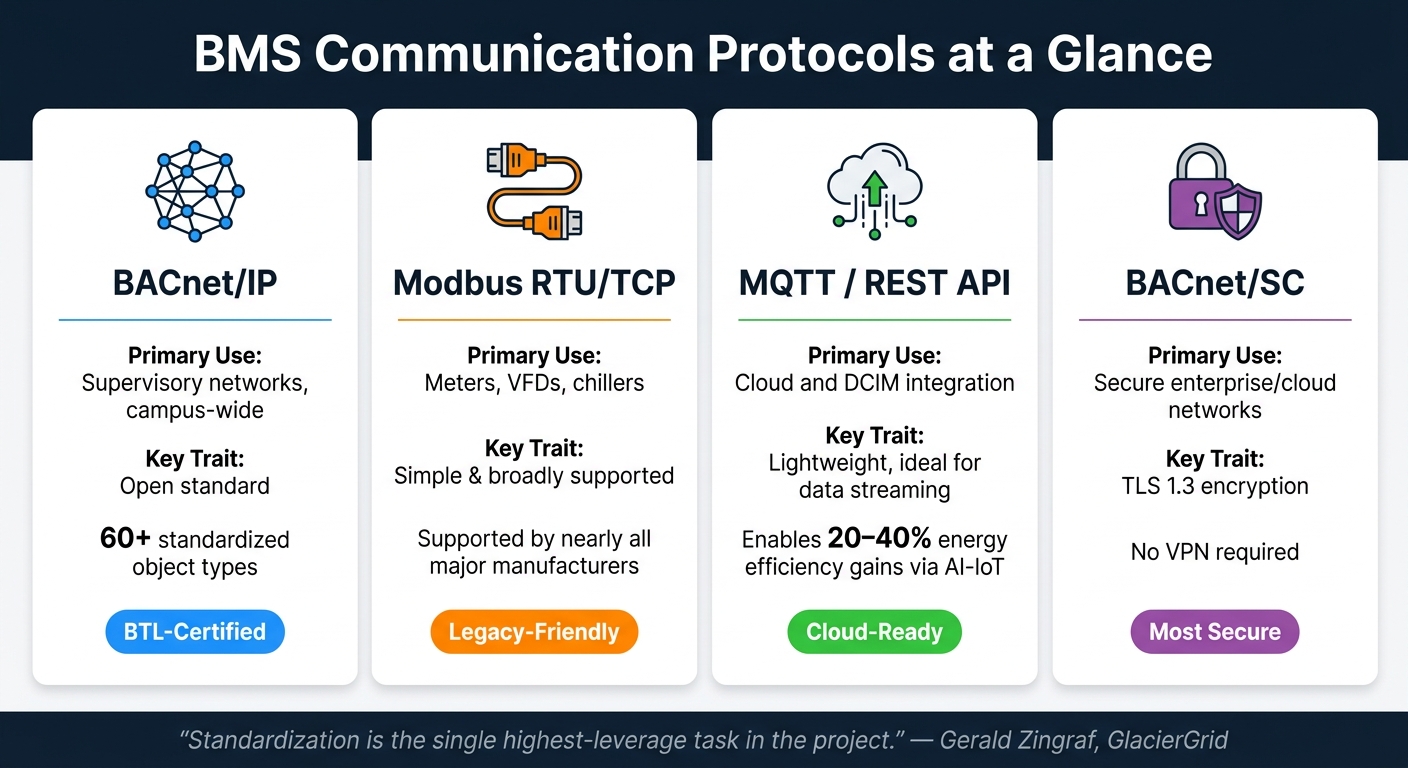

BMS Communication Protocols Compared: BACnet, Modbus, MQTT & BACnet/SC
A modern Building Management System (BMS) operates across three key layers: the field level, automation level, and management level. Each plays a distinct role in ensuring smooth and efficient building operations.
The field level is where everything starts. Sensors gather data on temperature, humidity, pressure, and power consumption, while actuators - like valves, dampers, and variable frequency drives (VFDs) - carry out commands. For data centers, this level is particularly detailed, with sensors monitoring specific metrics such as rack inlet temperatures and aisle pressure differentials.
At the automation level, the system processes the data it collects. Direct Digital Controllers (DDCs) are the core here, translating signals from field devices and directing actuators. A standout feature of DDCs is their ability to operate independently. Even if the management network goes offline, these controllers continue running their pre-programmed tasks without interruption.
"The most important design feature of DDC is Stand-Alone Operation: even if the upper management network is interrupted, DDC can continue to operate based on locally stored control programs." - CKY Refrigeration & Air Conditioning Engineering [2]
The management level is the interface for operators. This includes servers, dashboards, and reporting tools. In data centers, this level often integrates with DCIM (Data Center Infrastructure Management) systems, creating a comprehensive view that links IT loads to cooling performance [3].
Together, these layers form a cohesive system that brings all building subsystems under one operational umbrella.
A BMS isn't limited to managing a single system - it connects all major subsystems into one centralized platform. This includes HVAC systems (like chillers, air handling units, and precision air conditioners), electrical infrastructure (such as UPS systems and generators), lighting, access control, fire safety, and leak detection sensors [1][3].
This integration proves invaluable during emergencies. For instance, if a Precision Air Conditioning (PAC) unit fails, the BMS can quickly activate adjacent units or bring backup systems online, all without waiting for human intervention [3]. This kind of automated response highlights the advantage of a fully integrated BMS over isolated systems.
On the energy side, centralized control enables efficiency strategies. One example is chilled water reset, where the supply water temperature is adjusted incrementally based on cooling needs. Even a small increase in the chilled water supply temperature - about 1°C (1.8°F) - can boost chiller efficiency (measured as Coefficient of Performance, or COP) by 2–3% [2]. Over time, these small improvements can result in significant energy savings across large facilities.
The effectiveness of a BMS relies heavily on how well its subsystems communicate, which depends on the protocols used. The choice of protocol during the design phase determines how adaptable and compatible the system will be in the future.
BACnet (Building Automation and Control Networks) is the leading protocol for modern commercial and mission-critical buildings. Its object-oriented design includes around 60 standardized object types, allowing devices from different manufacturers to communicate seamlessly without custom drivers [9]. To ensure smooth integration, look for devices with BTL (BACnet Testing Laboratories) certification, which confirms compliance with the standard and reduces potential issues in multi-vendor setups [9].
Modbus, while older and simpler, remains widely used for equipment-level devices like power meters, VFDs, and chillers. Modbus RTU uses serial RS-485 connections, while Modbus TCP operates over Ethernet. Both are supported by nearly all major equipment manufacturers, making them a reliable choice [7].
As facilities adopt more advanced technologies, MQTT and REST APIs are becoming popular for pushing BMS data to cloud platforms and DCIM tools. These protocols enable advanced analytics and remote monitoring [3]. For deployments that prioritize security, BACnet/SC (Secure Connect) is gaining traction. It uses TLS 1.3 encryption to secure control traffic, eliminating the need for VPNs or complex configurations [8].
| Protocol | Primary Use | Key Trait |
|---|---|---|
| BACnet/IP | Supervisory networks, campus-wide | Open standard; 60+ object types; BTL-certified [9] |
| Modbus RTU/TCP | Meters, VFDs, chillers | Simple; broad device support [7] |
| MQTT / REST API | Cloud and DCIM integration | Lightweight; ideal for data streaming [3] |
| BACnet/SC | Secure enterprise/cloud networks | TLS 1.3 encryption; no VPN required [8] |
"Standardization is the single highest-leverage task in the project. Without it, analytics cannot compare sites or roll up insights." - Gerald Zingraf, GlacierGrid [7]
When selecting devices, always request a Protocol Implementation Conformance Statement (PICS) from vendors. This document outlines which BACnet objects and services a device supports, helping avoid expensive surprises during integration [9].
Energy inefficiency is a common issue in facilities without centralized systems. According to the U.S. Environmental Protection Agency and the Department of Energy, approximately 30% of energy used in commercial buildings goes to waste [1]. In data centers, cooling systems alone can consume 30% to 40% of a facility's total power [12].
A Building Management System (BMS) tackles this problem by providing real-time energy control. It dynamically adjusts cooling output based on actual compute demand, rather than operating at fixed safety margins. When integrated with Data Center Infrastructure Management (DCIM) tools, this setup eliminates unnecessary energy use [10]. For example, hybrid AI–IoT systems have been shown to improve energy efficiency by 20% to 40% [11], while predictive maintenance frameworks can save about 20% on energy costs [11]. Additionally, BMS enables real-time monitoring of Power Usage Effectiveness (PUE), comparing total facility energy to IT load. This data empowers facility managers to measure and meet sustainability goals [3].
"Integration of DCIM and BMS proposes a unified view of IT and building operations... The result demonstrates improved efficiency, reduced energy consumption and better protection of critical assets." - Peter Schwartz, Senior Technology Consultant, OryxAlign [10]
These energy management capabilities also contribute to maintaining uninterrupted operations, a critical factor in mission-critical environments.
Energy savings aside, BMS plays a vital role in ensuring operational reliability. In environments like data centers, reliability is non-negotiable. For instance, Tier-3 data centers are required to maintain an annual uptime of at least 99.982% [3]. Achieving this level of reliability goes beyond having robust hardware - it demands a BMS that can detect and respond to issues almost instantly.
In data centers, alarm latency must be extremely low. While a 30–60 second delay might suffice in a typical office building, data centers need alarms to register on dashboards in under 1 second, with some systems targeting response times as fast as 100 to 300 milliseconds [3]. This rapid response is crucial, as thermal issues in high-density environments can escalate quickly, threatening uptime. Using Change-of-Value (COV) subscriptions instead of traditional polling methods is one way to achieve these fast response times.
BMS also automates redundancy management in configurations like N+1 or 2N. It rotates active and standby units to balance their usage and ensures immediate failover if a primary unit fails. For example, a Tier-3 colocation facility in Hyderabad, which houses 180 racks and 12 Precision Air Conditioning (PAC) units, improved its annual uptime to 99.991% and reduced its PUE from 1.58 to 1.42 after implementing a phased BMS upgrade. This upgrade included rack-level inlet sensors, redundant PAC controllers, and COV-based alarm systems [3].
"A DC BMS that does not honour all three [redundancy, latency, and granularity] eventually causes an outage that breaks an SLA." - EnSmart [3]
BMS not only enhances energy efficiency and reliability but also simplifies oversight and remote management. It consolidates all monitoring into a single operational interface. Instead of juggling separate systems for HVAC, power, lighting, and access control, facility managers can monitor temperature, humidity, airflow, and energy consumption across all floors or even multiple sites in real time [1].
This centralized visibility is particularly valuable outside regular working hours. Remote access tools allow engineers to investigate alarms, adjust settings, and respond to incidents from anywhere [1]. For facilities aiming for 99.999% uptime (equivalent to less than 5.26 minutes of downtime per year) [4], such remote capabilities are indispensable.
"You can't improve what you can't see." - Chris Cullen, Business Development Director, Sirix [1]
The shift toward cloud-based BMS solutions is accelerating this trend. Nearly 45% of commercial building operators are either planning or open to adopting cloud-based BMS, reflecting the growing demand for centralized remote management, especially in multi-site data center operations [1].
When it comes to data centers, operational reliability and precision are non-negotiable. Unlike standard commercial systems designed for office environments, a Building Management System (BMS) for data centers must handle the demands of high heat loads, rapid response times, and critical consequences. It’s not just about scale - data center environments require a completely tailored approach.
For starters, the BMS should provide continuous monitoring of inlet temperatures at the rack level. This ensures conditions remain within ASHRAE A1/A2 thermal envelopes, with relative humidity levels between 20% and 80%. Zone-level averages simply won’t cut it. With modern racks generating between 5–25 kW of heat, a single overlooked area could lead to thermal throttling or, worse, equipment failure.
Here are other must-have capabilities for a data center BMS:
Aiming for a PUE below 1.4 is a practical goal, though hyperscale facilities often achieve values between 1.1 and 1.2 [12]. Without built-in PUE tracking, it’s impossible to make informed decisions.
A BMS that can’t evolve with your facility is a ticking time bomb. It’s crucial to evaluate how well the system integrates with Mechanical, Electrical, and Plumbing (MEP) infrastructure while leaving room for future growth.
One standout feature is BMS-EPMS convergence, which connects the Building Management System with an Electrical Power Monitoring System. This integration provides a unified platform for correlating power usage with cooling demand in real time. For example, Greenergy Data Centers in Estonia implemented a Siemens solution that monitors power quality from high-voltage substations down to uninterruptible power supplies (UPS). This setup allows them to manage their 110 kV substation from a single interface [13]. Siemens also notes that such integration can reduce staff onboarding time by 30% [13].
"EPMS detects millisecond-level events - faster than a standalone BMS - underscoring the need for integrated solutions." - Siemens [13]
Scalability is another critical factor. Reserve a 20–30% I/O margin on controllers to accommodate future sensors or actuators without replacing hardware [2]. Also, prioritize systems that support open protocols like BACnet/IP and Modbus. These ensure compatibility with third-party equipment, preventing vendor lock-in [2][4]. Modern BMS servers can now handle up to 1,000 IP devices per server - a 60% increase over earlier generations [6]. This expanded capacity is invaluable as your facility grows.
Here’s a quick overview of key MEP integration points a data center BMS should cover:
| MEP System | Key BMS Integration Points |
|---|---|
| Mechanical (HVAC) | Chiller sequencing, AHU supply/return temperatures, VAV damper positions, cooling tower fan speeds [2] |
| Electrical (Power) | UPS load current, battery charge levels, generator fuel status, PUE tracking [3] |
| Plumbing | Leak detection under raised floors, condensate monitoring, pipe differential pressure [2][3] |
With robust integration and scalability in place, the next step is leveraging data analytics for predictive insights.
While monitoring tells you what’s happening, analytics reveals what’s about to happen. This distinction is critical in preventing minor issues from escalating into costly Service Level Agreement (SLA) breaches.
Fault Detection and Diagnostics (FDD) tools are invaluable here. They automatically rank equipment anomalies, providing your team with a prioritized to-do list instead of a flood of raw data [6]. For instance, implementing standardized HVAC control sequences based on ASHRAE Guideline 36 can reduce energy use by an average of 30% [6]. FDD ensures these sequences operate as intended.
"AI-powered analytics can provide 24/7 monitoring, predicting system failures with greater accuracy enabling effective mitigation and minimal downtime." - Peter Schwartz, Senior Technology Consultant, OryxAlign [10]
Cross-system analytics add even more value. By correlating BMS data with EPMS data, hidden inefficiencies become apparent. For example, if a cooling unit draws excessive power during low-load periods, it could signal a refrigerant issue or a failing compressor. Siemens highlights that "integration unlocks faster detection of anomalies that would be missed by separate systems" [13].
For alarm responses, speed is critical. Data center BMS platforms must deliver event-to-dashboard latency under 1 second, compared to the 30–60 seconds acceptable in office environments [3]. This rapid response can mean the difference between a controlled incident and a full-blown outage. For more insights into how infrastructure choices affect operations, check out the iRecruit data center construction guide.
Even the most advanced Building Management Systems (BMS) rely heavily on the expertise of the people managing their implementation. Proper commissioning can cut HVAC energy use by 8–20% and catch 70–90% of installation defects before occupancy [15]. In other words, the team behind the system is just as important as the technology itself.
At the heart of a successful BMS project is the Commissioning Authority (CxA). This individual oversees the commissioning process, manages testing, and reports findings. To ensure impartiality, the CxA must remain independent from both the design and installation teams [15]. Supporting the CxA, the BMS contractor takes care of programming, point-to-point testing, and resolving issues. Meanwhile, mechanical and electrical contractors assist with equipment startup and coordinate functional testing [15].
The owner's IT team also has a critical role, especially in data-heavy environments like data centers. Tasks such as IP address allocation, VLAN setup, and firewall configuration fall under their domain. Delays in these areas can disrupt the entire commissioning schedule. To avoid bottlenecks, network requirements should be submitted at least 60 days before commissioning begins [16].
When it comes to technical skills, gaps often appear in areas like protocol knowledge (e.g., BACnet/IP, Modbus RTU/TCP), PID loop tuning, and cybersecurity compliance with standards like NIST SP 800-82 and IEC 62443 [15][16]. These are not optional skills - they are essential for ensuring the BMS performs as intended from day one. If your operations team lacks these capabilities, addressing the gap early is crucial. For guidance, the iRecruit.co jobs and workforce guide offers insights into how facilities are tackling these workforce challenges.
"A successful project relies on collaboration between the client, the BMS system integrator and the suppliers and installers of the separate and disparate systems." - Matthew Morrall, Chief Executive Officer, ABEC [14]
These roles and skills are indispensable for meeting the high reliability standards demanded by mission-critical facilities.
Implementing a BMS is not a one-time event; it’s a step-by-step process where skipping any phase can lead to bigger issues later. The process includes design/planning, installation, and a series of structured tests: Factory Integration Testing (FIT), Site Integration Testing (SIT), and Functional Performance Testing (FPT) [14][15].
FIT is conducted before equipment delivery to catch software integration issues early. This step significantly reduces commissioning time on-site and minimizes activation delays [14]. Once equipment is on-site, SIT ensures all subsystems - such as HVAC, power, fire, and security - work together seamlessly as a unified system rather than as isolated components [15].
For long-term reliability, two practices are essential. First, Direct Digital Controllers (DDCs) must be capable of operating independently, even if the management network goes offline. Second, using BMS trend data for predictive maintenance - such as monitoring narrowing temperature differentials - allows teams to address equipment issues before they escalate into failures [2]. This shift from reactive fixes to proactive maintenance is one of the key operational benefits of a well-implemented BMS.
A successful implementation naturally sets the stage for a governance framework that ensures long-term performance.
A strong governance framework begins with the Owner's Project Requirements (OPR). This document outlines energy goals, redundancy needs, and acceptance criteria before the design phase even starts. Without a clear OPR, commissioning can become subjective, making it harder to pinpoint and resolve performance gaps [17].
Beyond the OPR, maintaining long-term performance requires regularly updating the Basis of Design (BOD) to reflect changing facility needs. As loads increase, tenants change, or new equipment is introduced, the original design assumptions may no longer apply. Regular reviews - ideally once a year - ensure the BMS remains aligned with current operational conditions rather than outdated ones [15].
Cybersecurity is another critical aspect of governance, and it's no longer just an IT concern - it’s a facilities issue, too.
"Treating your physical building like a highly vulnerable IT environment is absolutely mandatory today." - Dmitry Nazarevich, Innowise [5]
Best practices like TLS encryption (BACnet/SC), network segmentation, and routine firmware updates should be standard, not optional [15]. Additionally, creating a comprehensive turnover package during commissioning sets the foundation for ongoing security and operational success.
This guide has explored how Building Management Systems (BMS) are more than just control platforms - they are the backbone of operational efficiency and financial performance. By integrating HVAC, power, lighting, and security systems, BMS enables organizations to make smarter, data-driven decisions. Facilities that implement BMS technology often see energy savings between 15–30% [18].
For data centers, the importance of BMS goes even further. As the EnSmart BMS Academy explains:
"Datacenter BMS is commercial BMS plus three things: redundancy, latency, and granularity. Skip any one of them and the SLA is at risk." [3]
This highlights the necessity of redundancy, low latency, and detailed monitoring to maintain critical Service Level Agreements (SLAs). Features like N+1 controller redundancy, sub-second alarm latency, and rack-level temperature monitoring are essential when evaluating systems for data centers.
From a financial perspective, the benefits are clear. Traditional BMS installations often achieve a payback period of about four years, while IoT-enabled monitoring systems can reduce that to just two years [20]. Throughout this guide, we've seen how well-executed BMS strategies not only deliver cost savings but also improve system resilience. Achieving these outcomes requires professional commissioning, the use of open protocols, and a skilled team to manage operations effectively.
It's important to remember that technology alone won't guarantee success. As B. Scott Muench of J2 Innovations explains, "BMS effectiveness hinges on proper installation and ongoing maintenance." [19] Proper installation, thorough commissioning, and strong governance are what transform BMS technology into a powerful tool for operational success.
A data center Building Management System (BMS) stands apart from a commercial BMS due to its focus on precision, reliability, and integration. Unlike commercial BMS, which prioritizes comfort and energy savings, a data center BMS is designed to handle intense heat loads, maintain tight thermal parameters, and work seamlessly with specialized cooling systems like CRAC/CRAH units. It also integrates with Electrical Power Monitoring Systems (EPMS) to ensure power redundancy and availability, which are critical for uninterrupted operations.
To steer clear of vendor lock-in in a Building Management System (BMS) project, focus on using open communication protocols such as BACnet/IP, Modbus, MQTT, and LonWorks. Clearly state in your RFP that all data must remain both accessible and exportable, avoiding restrictions tied to proprietary formats. Opt for vendors that provide scalable, modular systems capable of integrating with third-party platforms. Also, ensure the vendor has transparent policies regarding data ownership, access, and retention.
Before a Building Management System (BMS) goes live, commissioning ensures it aligns with design and operational goals. This process involves several key stages:
Each step is essential for ensuring the system operates as intended.
