Managing data centers effectively requires integrating EPMS (Electrical Power Monitoring System), BMS (Building Management System), and DCIM (Data Center Infrastructure Management). Each system focuses on different areas - power, environment, and IT infrastructure - but their lack of communication creates inefficiencies and risks. Integration eliminates blind spots, speeds up decision-making, and ensures systems work together seamlessly.
Integrating these systems during the design phase can reduce costs and improve uptime, creating a unified view that links power, cooling, and IT needs.

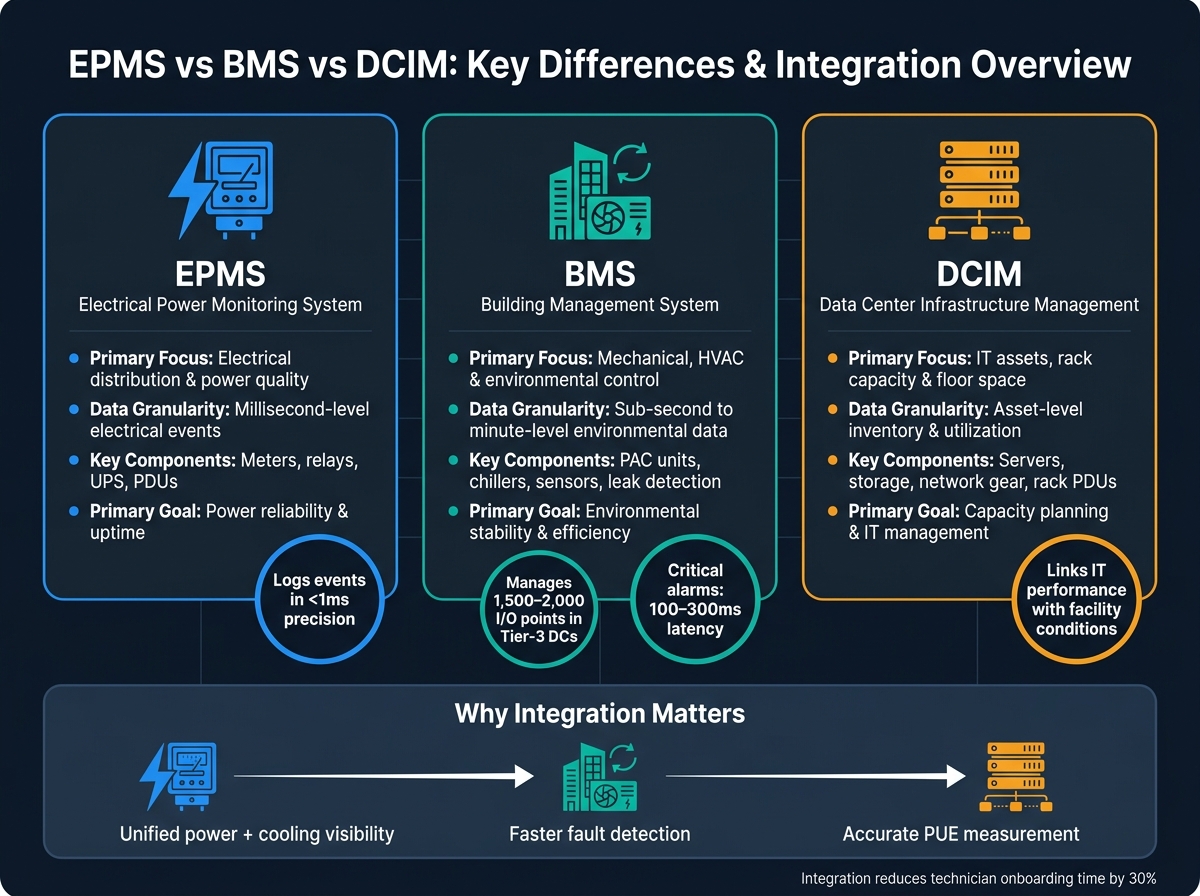

EPMS vs BMS vs DCIM: Key Differences & Integration Overview
In mission-critical projects, understanding the role of each system is key to achieving smooth operational visibility. These three platforms - EPMS, BMS, and DCIM - each focus on different areas: electrical, mechanical, and IT systems. Despite their unique domains, they share overlapping data needs, making integration a logical step. For more on how these systems fit into larger infrastructure projects, check out this data center construction guide.
An EPMS (Electrical Power Monitoring System) acts as the nerve center for tracking your electrical distribution network. It monitors power consumption, quality, and faults throughout the infrastructure, from utility entry points to individual circuits. EPMS systems collect data from connected devices every second, while Sequence of Events Recorders (SER) log status changes with millisecond precision [2][6].
"A Power Monitoring System monitors the electrical distribution grid, alerts to power quality problems, and logs power data/events up to the millisecond over time." - Michael Skurla, apt4power.com [3]
Beyond detecting faults, EPMS plays a critical role in capacity management. It tracks redundancy setups like N+1 or 2N+1 configurations, monitors circuit breaker aging to schedule preventive maintenance, and provides detailed data for verifying utility bills and forecasting energy needs [2][6]. This level of precision is crucial for real-time decision-making when integrating data streams across platforms.
A BMS (Building Management System) bridges the control of the physical environment with the broader infrastructure. It manages HVAC, lighting, security, and mechanical equipment. In data centers, this means controlling Precision Air Conditioning (PAC) units, chillers, and rack-level sensors to maintain consistent temperature and humidity.
Data center-grade BMS systems are far more robust than those used in standard commercial buildings. For instance, a typical Tier-3 data center BMS manages 1,500–2,000 I/O points - about 10 times more than a standard commercial setup - and requires alarm latencies of less than one second, with critical alarms appearing on dashboards within 100–300 milliseconds [7].
"Datacenter BMS is commercial BMS plus three things: redundancy, latency, and granularity. Omitting any of these factors risks surpassing SLA limits." - EnSmart [7]
The BMS also provides vital environmental data, such as rack-level inlet temperatures and humidity levels. This information is often shared with other systems, enabling better workload placement and cooling adjustments [7][8].
DCIM (Data Center Infrastructure Management) connects IT performance with facility conditions. It oversees IT assets, rack capacity, and floor space within the "white space" of a data center. Its primary strength lies in operational intelligence - modeling power and cooling flows from their sources to IT demand. This allows for effective capacity planning and risk assessment before making infrastructure changes [5].
DCIM integrates data from both BMS and EPMS to identify trends. For example, it can analyze how increased compute workloads drive up power consumption, which in turn raises cooling requirements [1][8].
| Feature | EPMS | BMS | DCIM |
|---|---|---|---|
| Primary Focus | Electrical distribution & power quality | Mechanical, HVAC, & environmental control | IT assets, rack capacity, & floor space |
| Data Granularity | Millisecond-level electrical events | Sub-second to minute-level environmental data | Asset-level inventory & utilization |
| Key Components | Meters, relays, UPS, PDUs | PAC units, chillers, sensors, leak detection | Servers, storage, network gear, rack PDUs |
| Primary Goal | Power reliability & uptime | Environmental stability & efficiency | Capacity planning & IT management |
When designing integration for critical systems, it’s crucial to establish a clear architecture that separates southbound telemetry from northbound data flows. This approach ensures smooth operations and makes troubleshooting more straightforward. Southbound telemetry handles the movement of data from hardware devices to gateways, while northbound flows push data from those gateways to dashboards, NOC systems, or ITSM platforms [4]. Keeping these flows distinct avoids situations where raw device data could unintentionally trigger alarms.
For teams working on power and energy infrastructure projects, choosing the right protocol early on is a critical decision. There’s no one-size-fits-all solution - protocols vary by domain. For instance, SNMP v3 is standard for IT equipment like network gear and rack PDUs, Modbus RTU/TCP is commonly used for power systems, and BACnet/SC is preferred for HVAC and building automation [4][5]. The table below outlines common protocols by domain:
To streamline the integration process, create an integration contract. This document should detail every source system, destination platform, protocol, and data point being exchanged [4]. It serves as a shared reference for all stakeholders, ensuring clarity and preventing scope creep during commissioning.
"Integration is what transforms raw control data into meaningful operational insight." - Philip Tappe, Integration Engineer, Modius [5]
| Domain | Common Systems | Protocol |
|---|---|---|
| IT Monitoring | Network gear, rack PDUs | SNMP v3 |
| Power Equipment | UPS, meters, ATS, switchgear | Modbus RTU/TCP |
| BMS/HVAC | Chillers, CRAC/CRAH units | BACnet (BACnet/SC preferred) |
| Northbound Integration | DCIM to NOC/ITSM/Cloud | HTTP/HTTPS APIs, MQTT |
Once protocols are defined, the next step is to establish consistent data mapping to ensure smooth communication between systems.
Selecting protocols is just the beginning. The real challenge lies in ensuring data is interpreted consistently across all systems. For example, a Modbus Holding Register (4xxxx) from a power meter must translate accurately into a BACnet Analog Input (AI) on a building management system (BMS). This translation process should be carefully documented and validated to avoid assumptions [9].
Another key aspect is point ownership. Before mapping registers or BACnet objects, make it clear which system controls specific commands, setpoints, alarms, and resets. Overlooking this step can lead to failures during commissioning [9]. Tools like Project Haystack offer a tagging framework (e.g., site, equip, point, meter) to standardize data semantics across platforms [9].
"Multi-protocol integration works when point ownership is explicit. Decide which system owns commands, setpoints, alarms, schedules, and resets before mapping registers or BACnet objects." - ControlsHub Technical Editorial [9]
Even with protocols and standards in place, maintaining real-time synchronization is vital. Different systems operate at different speeds. For instance, EPMS (Electrical Power Monitoring Systems) can detect events in milliseconds [1], while BMS polling often runs on intervals of 30 to 300 seconds [10]. Without accounting for this speed gap, critical power anomalies could go unnoticed until it’s too late.
Two practices can help bridge this gap. First, standardize data during capture. This means unifying units (e.g., converting all power readings to kW and temperatures to °F), naming conventions, and timestamps before data is processed by dashboards or alarm systems [4]. Second, synchronize all systems to a common time source. Without uniform timestamps, correlating fast EPMS events with slower BMS alarms becomes guesswork [4].
"The fewer steps before normalization occurs, the lower the risk of inconsistent raw data bleeding into alarms and reports." - Modius, as cited by Coolnet [4]
For teams aiming to implement predictive operations, a synchronized and standardized data foundation is essential. This approach not only improves operational reliability but also supports faster decision-making, which is critical in high-stakes environments.
Real-time data is only as useful as it is secure. In 2024, a European data center experienced a 12-hour outage when attackers exploited an unsecured remote maintenance account. This breach allowed ransomware to encrypt BMS configuration files, leading to losses exceeding $4.3 million USD [15]. Protecting integrated systems starts with strong network segregation.
"The perimeter of risk is no longer purely digital; it is both physical and operational." - negg Group [15]
The most reliable way to safeguard your systems is by separating your OT network from your corporate IT network. The Purdue Model is the go-to framework here, placing an Industrial DMZ (IDMZ) at Level 3.5. This DMZ acts as a buffer zone between enterprise IT and facility control systems. No traffic crosses directly; instead, communication is managed through jump hosts and data brokers [12][13].
"The IDMZ must terminate all connections from both directions. Corporate IT systems connect to IDMZ services. OT systems connect to IDMZ services. No connection crosses the IDMZ directly." - Opsio Engineering Team [12]
Here’s how the Purdue levels align with integrated systems:
| Purdue Level | Function | Integration Component |
|---|---|---|
| Level 4/5 | Enterprise IT | ERP, Business Intelligence, Corporate SIEM |
| Level 3.5 | Industrial DMZ | Jump Hosts, MFA Gateways, Data Brokers |
| Level 3 | Site Operations | OT Historians, Patch Staging, Backup Servers |
| Level 2 | Supervisory Control | BMS/DCIM Servers, HMI Clients, Engineering Workstations |
| Level 1 | Basic Control | PLCs, EPMS Meters, RTUs, VFDs |
| Level 0 | Physical Process | Sensors, Actuators, Power Distribution Hardware |
Inside the OT network, micro-segmentation strengthens security by isolating systems into smaller zones using VLANs and managed switches. For instance, HVAC controls should operate on a separate segment from power metering. This approach limits lateral movement if one zone is compromised [11][12]. With 96% of OT security incidents in 2024 originating from IT network connections, the IT/OT boundary remains the most critical defense line [12].
After segregating networks, the next step is enforcing strict access controls. A Zero Trust model works best - not just adding MFA to a VPN, but implementing granular Role-Based Access Control (RBAC). This ensures clear distinctions between actions like viewing telemetry and modifying setpoints [4][15].
Outdated, unencrypted protocols should be replaced. Use SNMPv3 for IT monitoring and transition BMS/HVAC systems to BACnet/SC (Secure Connect), which employs TLS encryption and certificate-based authentication. For systems like Modbus TCP, which lack native encryption, use compensating controls like network segmentation and industrial firewalls with Deep Packet Inspection (DPI). These firewalls can block unauthorized "write" commands while allowing read-only data for monitoring [4][11].
"Zero-trust is not 'add MFA to a VPN.' It requires granular access, robust identity verification, strict segmentation, and comprehensive audit logging." - Coolnet [4]
Remote access often represents the weakest link in integrated OT environments. Attackers frequently exploit stolen third-party vendor credentials to infiltrate facility networks and move laterally to critical systems [16]. This vulnerability is especially concerning for facilities where third parties manage access to BMS or EPMS gateways.
Direct external connections to OT devices should be entirely disallowed. All remote access must go through a jump host within the IDMZ, with Multi-Factor Authentication (MFA) required for every session. For vendors, implement Just-in-Time (JIT) access, which provides temporary, time-limited permissions that expire automatically after the task is completed [4][12][13]. Pair this with session recording and centralized audit logs to ensure every change is traceable. As the Australian Signals Directorate advises:
"A more critical environment should never be administered from a less critical environment, and should always be managed from a network with the same or higher security posture." - Australian Signals Directorate (ASD) [14]
Finally, ensure your team can operate systems manually if remote access fails or is compromised. Physical override capabilities for cooling and power systems are a must-have safeguard in any mission-critical environment [16].
Ensuring secure integration requires a thorough and structured commissioning process. While robust integration architecture and security protocols are critical, commissioning is where the rubber meets the road. It’s the stage where theoretical designs are tested against real-world performance, revealing any gaps or mismatches. For professionals involved in data center construction, this step is the key to building reliable, integrated platforms that stand the test of time.
Commissioning isn’t just about spot-checking a few data points. Every mapped data point must be verified against its source HMI to avoid hidden scaling errors that could lead to failures later. Below are five essential tests that should be part of every commissioning process:
| Commissioning Test | Simulation Action | Pass Criteria |
|---|---|---|
| Telemetry Completeness | Disconnect a sensor class | Missing points are flagged and displayed in the system’s user interface. |
| Alarm Fidelity | Trigger and clear a threshold breach | Generates one actionable alarm with a clear "return-to-normal" event. |
| Alarm Flood Control | Simulate an upstream power outage | Suppresses redundant downstream alerts through root-cause correlation. |
| Remote Access Audit | Initiate a vendor JIT session | Logs and records all session activities and changes for verification. |
| DR/Failover Drill | Simulate WAN loss to the site | Ensures local data buffering and transitions the system to a safe degraded mode. |
During commissioning, confirm that polling intervals and data units align with the integration plan. Advanced Power Technologies (APT) emphasizes the importance of a clear polling hierarchy:
"It is most efficient for the power monitoring system to poll the electrical distribution and metering systems. Then, it can pass the information to the building management system for a cleaner design." - APT [3]
This approach avoids the "two-master polling" issue, where both the EPMS and BMS try to query the same meter simultaneously, leading to communication errors and data conflicts.
Once commissioning validates system performance, the focus shifts to maintaining that performance through structured governance.
Without proper governance, even minor changes - like firmware updates or hardware replacements - can disrupt data mappings. A protocol integration register is essential for sustainable system management. This dynamic document tracks every gateway, its configuration file versions, mapped data points, and the technician responsible for each.
Regular alarm tuning is another critical maintenance task. Over time, threshold drift and equipment wear can lead to excessive alarm noise, which in turn causes operator fatigue. To address this, implement a deduplication window - a mechanism that consolidates repeated alarms for the same asset within a set time frame. This ensures the notification queue remains actionable and manageable.
"Alarm floods are a design problem. Standardize a taxonomy, map severities, and deduplicate/correlate before sending tickets." - Coolnet [4]
A practical example of effective governance comes from Greenergy Data Centers in Estonia. In 2026, they deployed an integrated BMS-EPMS platform using Siemens Desigo CC and SENTRON Powermanager to manage HV/MV, LV, and UPS systems. By adhering to the same integration and security principles outlined here, they achieved unified visibility across their mechanical and electrical infrastructure. That visibility only remained effective because they maintained rigorous data governance practices [1].
Governance ensures ongoing performance, but how do you measure success? Let’s look at the metrics that matter.
Measuring the success of an integrated system requires tracking specific metrics across a few key areas. For example, data completeness - the percentage of data points actively reporting versus returning null or stale values - indicates the health of your communication layer. Alarm response time reflects whether your alarm taxonomy is effective or overwhelming your team with noise.
PUE accuracy serves as a critical indicator of integration quality, as it requires synchronized data from both EPMS and DCIM systems. If these systems fail to align, the platform cannot deliver an accurate PUE figure, undermining its value [8]. Monitoring equipment runtime hours and the frequency of setpoint adjustments can also highlight systems that are overworked or frequently overridden, both of which are early signs of potential issues.
| Metric Category | KPI | Purpose |
|---|---|---|
| System Health | Polling Latency / Throughput | Verifies real-time data flow and system responsiveness [9]. |
| Reliability | Unplanned Downtime | Assesses the effectiveness of predictive maintenance strategies [6]. |
| Efficiency | PUE Accuracy | Confirms alignment between cooling and power systems with IT demand [8]. |
| Data Integrity | Mapping Accuracy / Completeness | Ensures the digital twin accurately reflects the physical environment [9]. |
| Operational | Alarm Response Time | Measures how quickly teams respond to critical events [1]. |
Another often-overlooked metric is staff onboarding speed. A unified BMS-EPMS platform can cut technician training time by 30% compared to fragmented systems [1]. This is a tangible benefit that goes beyond just uptime or efficiency.
"Operational intelligence emerges only when control and analytics work together." - Modius [5]
Bringing together EPMS, BMS, and DCIM into a unified system is critical for operating mission-critical infrastructure. When systems operate in isolation, it slows down fault detection and fragments decision-making. But with proper integration, a single operational view ensures that cause and effect are always clear. This not only speeds up fault detection but also simplifies decision-making across every layer of operations.
Key practices - like creating a clear integration architecture, standardizing naming conventions, and adopting zero-trust remote access - help eliminate the silos that lead to system failures. A unified dashboard offers leaders a complete view of system interdependencies, so power, cooling, and IT performance are evaluated together, not separately. For example, integrated platforms can reduce technician onboarding time by 30% [1], while EPMS systems can detect sub-cycle electrical events in milliseconds - something isolated systems would miss entirely [2]. These capabilities are crucial for meeting the 99.999% uptime that today’s data centers demand.
Using open protocols and modular architecture allows systems to grow without requiring a full redesign. This means new vendors, equipment, or capacity can be added without disrupting existing workflows. Such a scalable and secure framework supports long-term operational reliability while building on the strategies outlined earlier.
"Integration connects cause and effect across IT demand, power, and cooling." - Philip Tappe, Integration Engineer, Modius [5]
Commissioning a unified platform is just the start. Regular governance, alarm fine-tuning, and KPI monitoring are essential to keep the system running smoothly over time. Facilities that prioritize these ongoing efforts don’t just improve efficiency - they build resilience and position themselves for future growth.
Instead of emphasizing one system over the others, aim for a unified architecture that brings EPMS, BMS, and DCIM into harmony. Integration shouldn't feel like an add-on - it needs to be part of the design from the start.
Establish a reference architecture to ensure data is standardized across all three systems. By using a single interface, you can connect BMS mechanical data, EPMS power metrics, and DCIM IT models. This setup can uncover critical insights, such as the relationship between IT load and cooling demand.
Managing alarm floods starts with treating alarm management as a critical part of the design process. Here's how to approach it effectively:
By integrating these steps, you can create a more efficient and manageable alarm system, helping operators respond swiftly and accurately.
When it comes to securing networks, the best strategy is to skip direct network tunnels altogether. Instead, opt for a zero-trust, application-level setup that doesn't rely on open inbound firewall ports. Connections should terminate within an OT DMZ, and access should be routed through a hardened jump host or a remote access gateway for added security.
To keep things locked down, focus on these key measures:
These steps help create a robust defense against unauthorized access.
