If I had to sum it up in one line: Tier 4 costs more because you pay for two live paths, more separation, and more testing.
In 2026 U.S. pricing, I’d budget about $9 million to $14 million per MW for Tier 3 and $14 million to $22 million per MW for Tier 4. That usually puts Tier 4 at about 25% to 40% higher for the same commissioned IT load.
Here’s the short version:
If I were comparing the two for a budget model, I’d focus on four things first: cost per MW, redundancy, commissioning talent and scope, and schedule risk. That’s where most of the difference sits.

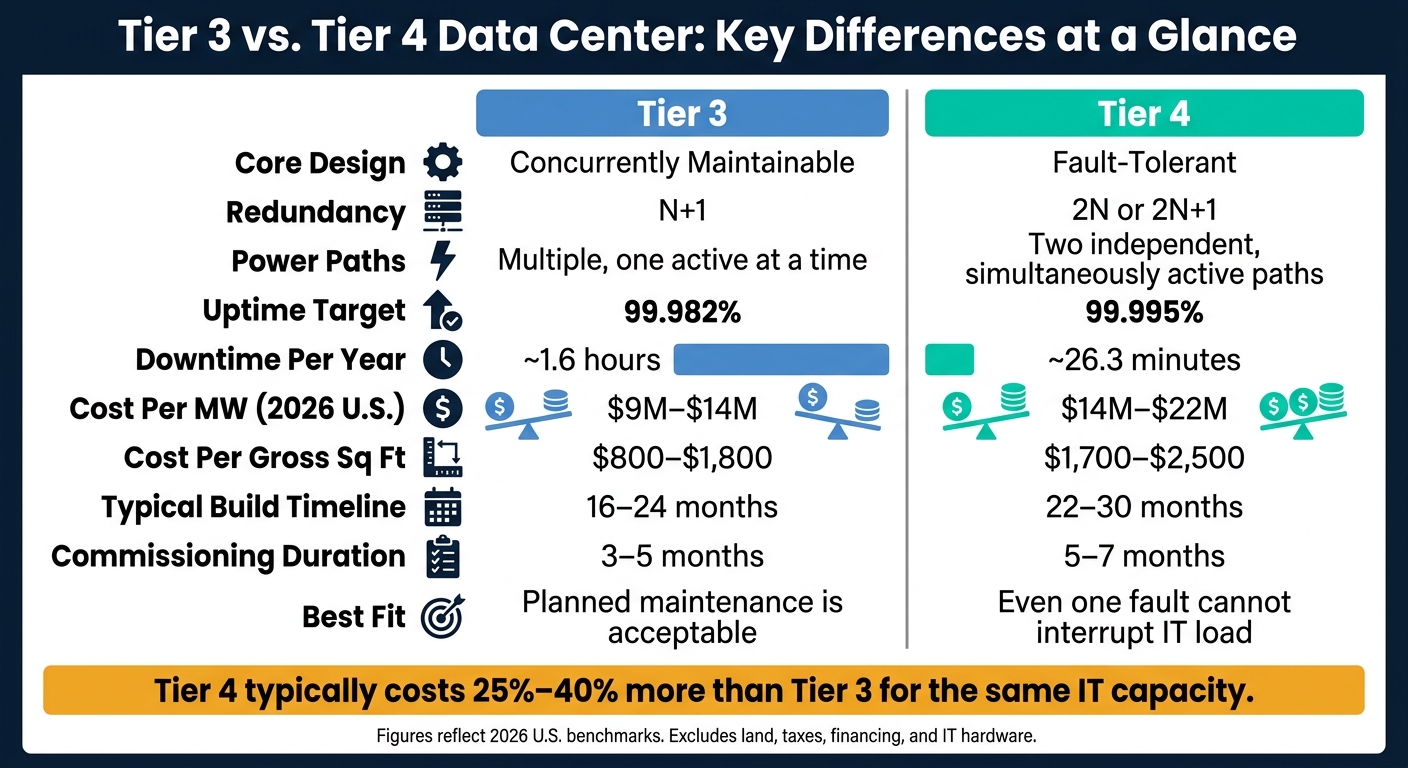

Tier 3 vs Tier 4 Data Center: Cost, Uptime & Build Time Compared
Bottom line: if your business can handle planned maintenance and tighter capex, Tier 3 is often the better fit. If even a short outage creates major revenue, contract, or regulatory risk, Tier 4 may justify the added spend and longer build.
In 2026 U.S. benchmarks, Tier 4 data centers cost 25%–40% more than Tier 3 for the same IT capacity. In liquid-cooled or AI-optimized setups, Tier 4 can reach $25,000,000 per MW.[13][12][14][15]
Put simply, Tier 4 costs more because it asks for more: more redundancy, more separation, and more work during commissioning.
On a per-square-foot basis, Tier 3 sites usually fall in the $800–$1,800 per gross square foot range. Tier 4 projects, especially in expensive U.S. markets, often land between $1,700 and $2,500 per gross square foot.[2][5][7][9]
That premium doesn’t stay fixed. It can shrink when teams use shared infrastructure and value engineering. It can grow when a project needs tighter physical security, AI-ready power distribution, utility workarounds, or more difficult interconnections.[5][7][8][10]
This is why early planning matters. If you lock in the tier, power density, and security assumptions at the start, your budget comparisons are much less likely to drift.
Those cost gaps come from added redundancy, separation, and commissioning scope, which the next section breaks down by system.
These benchmark ranges cover shell-and-core construction plus standard commissioning. That usually includes the building structure and envelope, medium-voltage electrical gear, UPS systems, generators, switchgear, mechanical and cooling systems, basic white space fit-out, and baseline security systems.[2][5][7]
They do not include land acquisition, off-site utility work, taxes, financing costs, or owner-furnished IT hardware. Those items can add millions to tens of millions of dollars per MW.[2][5][6][7][11]
There’s also an easy trap here: not every estimate covers the same scope. Some stop at shell-and-core. Others also include white-space fit-out and Day 2 expansion allowances. If you compare budgets without matching scope, the numbers can look off even when both estimates are reasonable.[5][7][11]
That scope difference is what drives the Tier 4 premium in electrical, mechanical, and commissioning work.
The Tier 4 price jump comes from extra redundancy, physical separation, and more testing before the site goes live. In plain terms, you’re paying for more gear, more space, and more labor.
That premium tends to show up in three main areas: power, cooling, and commissioning.
The biggest share of the Tier 4 premium usually comes from the power system.
Tier 4 requires two independent, active power paths. That pushes up the scope for UPS systems, generators, switchgear, breakers, and cabling because much of that infrastructure must be duplicated[17].
It also goes beyond the big-ticket hardware. Tier 4 calls for tighter integration between the building automation system and the electrical power monitoring system. On top of that, teams often need more equipment rooms just to house the added systems and support the extra coordination that comes with them[17].
Cooling has to remain online even during a fault. That means more chillers, pumps, CRAHs, controls, and piping, all built with duplication in mind[17].
Once rack density reaches 40–80 kW per rack, liquid cooling stops being a nice-to-have and starts looking like the base case. That adds CDUs, manifolds, leak detection, and containment. The result is a roughly 7%–10% CAPEX premium compared with air-cooled designs[16].
Tier 4 also calls for fire-rated separation between redundant components[17]. That sounds simple on paper, but it adds work across the board. Structural, mechanical, electrical, and controls teams all have to coordinate more closely, and construction gets more difficult because those systems can’t just sit side by side without clear separation.
Fuel systems add cost too. Tier 4 needs higher redundancy and automatic crossover so generators can keep running during a utility outage[17].
Commissioning is the last big cost step, and it’s also the point where the project proves it can do what the design promised. Tier 4 commissioning adds:
During IST, the team simulates actual power-loss conditions to make sure the facility performs as designed. This stage isn’t cheap to get wrong. Delays here can be brutal, with commissioning costs reaching upwards of $100,000 per hour.
All of this also stretches procurement timelines and increases staffing needs, requiring construction teams to prepare for more complex delivery strategies.
Tier 4's higher capex doesn't just hit the budget. It also tends to stretch the schedule, add procurement pressure, and pull in a larger project team.
In the U.S., a typical Tier 3 data center project usually runs about 16–24 months from early planning to commissioning. A similar Tier 4 project more often lands in the 22–30 month range.[2] That gap comes from Tier 4's added redundancy and physical separation, which slow down almost every stage, from design to final testing.[2]
The biggest schedule risk often comes from long-lead electrical and mechanical equipment. Medium-voltage switchgear can take about 44–65 weeks, and some setups can stretch to 52–80 weeks. Large diesel generators in the 2 MW-plus class are often in the 52–80 week range. Large power transformers can hit 80–128 weeks, and custom units may take 3–5 years.[23][24][25][26]
That kind of lead time can throw the whole job off balance. If switchgear delivery slips by six weeks, commissioning can slide by 8–10 weeks because energization has to follow a fixed sequence.[26]
Teams usually cut that risk by locking in key vendors early, bringing in contractors early or using design-assist when it fits, and baking procurement milestones into the master schedule with enough float to absorb factory and testing delays.
Once the critical-path equipment is secured, the next big schedule driver is commissioning.
Tier 4 commissioning often takes 5–7 months, compared with 3–5 months for Tier 3.[2][19] The reason is pretty simple: Tier 4 needs deeper integrated testing and fault-tolerant validation. Load bank testing at design and rated capacity may include continuous runtime tests of at least eight hours, and best-practice runs can extend to 24 hours.[19]
Before Level 5 integrated systems testing starts, the building management and controls system (BMCS) has to be fully programmed, with graphics, alarms, and trend logs live.[19] That point matters more than it may seem. Operations teams depend on those controls from day one, and BMCS problems found late in the job are expensive to fix.
That heavier testing load changes the staffing plan. A Tier 3 project can often run with a commissioning manager or agent, an MEP coordinator, and standard project management support. Tier 4 usually calls for dedicated electrical and mechanical commissioning leads, along with deeper QA/QC, scheduling, cost control, and MEP management support.[19][20][21][22]
Tier 3 and Tier 4 projects both punish inexperience. Tier 4 just does it faster, and at a much higher cost. Misreading the fault-tolerance topology, failing to preserve physical separation between redundant systems, or writing incomplete Level 4–5 test scripts can trigger outages that break Tier 4 requirements and delay certification.[1][18][19]
That's why prior mission-critical experience matters so much. On Tier 4 builds, specialized hiring isn't just an HR step. It's a cost-control move. Project executives, project managers, MEP coordinators, schedulers, cost engineers, commissioning managers, and QA/QC leads all need mission-critical experience. The right team doesn't just protect the timeline. It helps cut risk across the whole build.
At this point, the choice comes down to one thing: how much failure risk your business can live with.
Tier 3 works for workloads that can handle planned maintenance and some downtime. Tier 4 works for workloads that can't handle even a single fault. On paper, the gap may look small. In practice, it can be a big deal when every minute offline costs money.
Tier 4 also tends to cost more per MW of IT load. Why? It needs duplicated power, duplicated cooling, and more in-depth commissioning. In a data center construction project, the better question isn't simply whether Tier 4 offers more uptime. It's whether that extra uptime is worth the higher capex, the longer build schedule, and the more specialized team needed to pull it off.
The top tier isn't always the smart pick. In some cases, owners hit their uptime goals with multiple Tier 3 sites instead of a single Tier 4 facility.
That extra cost only pencils out when uptime risk matters more than budget limits, timeline pressure, and staffing strain. Tier 4 makes sense when an outage leads to regulatory exposure, contract penalties, or major revenue loss. Financial trading platforms, national payment processors, and government and defense workloads are the clearest examples.[3][27][4][28]
Owners that set their uptime target, budget envelope, operating model, and staffing capability early are much more likely to build the right facility on time and with the level of reliability the business actually needs.
Choose based on your downtime tolerance and budget. Tier 3 lets teams perform maintenance at the same time the site stays up, so service doesn't have to stop. It also usually costs less.
Tier 4 is fault-tolerant. It's built to handle equipment failures without affecting operations, but it often increases construction costs by 25% to 40% compared with Tier 3. Make this decision early so you don't get stuck with expensive design changes later.
Tier 4 is worth the extra cost when your operations can’t tolerate downtime and need fault-tolerant infrastructure. Unlike Tier 3, which focuses on concurrent maintainability, Tier 4 uses 2N+1 redundancy so a single equipment failure doesn’t affect operations.
That extra reliability usually pushes construction costs up by 25% to 40%. It also adds to day-to-day operating costs, including the need for a larger specialized workforce. If your uptime needs aren’t that strict, Tier 4 may leave you paying for capacity you don’t use.
No. Multiple Tier 3 sites do not replace a single Tier 4 facility because they meet different availability standards.
Tier 3 is concurrently maintainable, while Tier 4 is fault-tolerant. That gap matters. Tier 4’s higher uptime target - 99.995% versus 99.982% for Tier 3 - comes from the facility’s architecture, not from stacking more lower-tier sites together.
