If you want this role, here’s the short answer: you need to lead coordination, keep trade models aligned, support field install, and protect turnover dates on data center and advanced manufacturing jobs. In the U.S., pay often lands around $145,000–$195,000 for manager-level roles, with higher ranges in markets like Northern Virginia, Phoenix, and Dallas–Fort Worth.
I’d sum up the article like this:
A few numbers stand out. North American inventory in the four largest data center markets grew 33% year over year in Q1 2026. Northern Virginia reached 4,182.0 MW, and Dallas–Fort Worth hit 1,249.4 MW. That growth helps explain why employers pay more for people who can keep coordination clean and field work on schedule.
If I were reading this to plan my next move, I’d focus on one idea: software gets you in the door, but ownership of coordination and field results is what moves you up.
A Hyperscale BIM/VDC Manager leads model-based delivery on data center and advanced manufacturing projects. The role keeps the model, trade teams, and field work lined up from coordination through turnover.
In construction, hyperscale means large, fast-track programs built as repeatable campus expansions or standard prototypes, not one-off buildings. Picture several matching data halls going up in sequence. Or a semiconductor fab where each utility system has to hit the same spec across multiple phases.
The market numbers show just how fast this space is moving. CBRE reported that North American inventory across the four largest data center markets grew 33% year-over-year in Q1 2026. Northern Virginia alone added 1,135.9 MW to reach 4,182.0 MW of wholesale inventory. Dallas-Fort Worth grew 43.7% year-over-year to 1,249.4 MW during the same period.[4]
That kind of scale changes the BIM workflow. It demands tighter coordination and less room for drift than a standard commercial project.
The manager owns the BIM Execution Plan (BEP) and leads the coordination process. They maintain the federated model, which brings together architectural, structural, and MEP submodels that every trade uses. They also run clash detection, assign issues, and help clear conflicts before fabrication or installation. On hyperscale jobs, that rhythm is usually weekly, before work moves forward in the shop or in the field.[5]
A big part of the role is trade leadership. This person keeps mechanical, electrical, plumbing, fire protection, structural steel, and prefab partners working from the same playbook. And it’s not just about geometry. It’s about the build plan too.
That includes lining up trade priorities with:
The manager also connects design consultants, field leadership, QA/QC, and commissioning teams. The point is simple: model decisions have to support installation and closeout, not just design intent on a screen.
That’s where this role starts to split from general commercial BIM.
The differences are easiest to see side by side:
On a hyperscale facility, the model has to do more than help teams coordinate. It needs to support fabrication readiness, modularization, phased energization, and commissioning prerequisites at the same time. One clash that slips through can hold up power-on or delay commissioning. And that’s not a small issue when the owner has already tied that turnover date to live operations.
Those responsibilities connect directly to the tools covered next.
Employers hire for three things: model control, field integration, and leadership. In practice, those show up in the day-to-day standards, workflows, and habits teams expect from a BIM/VDC lead.
At the center of the role is federated model management. That means bringing together models from architecture, structure, MEP, fire protection, controls, and specialty systems into one coordinated environment.
That only works if the standards are tight from the start. Shared coordinates need to be locked early in the BEP. Folder structures should be organized by building, level, and discipline so teams aren’t wasting time hunting for the right files or, worse, using the wrong ones.
Model health checks matter more than a lot of teams admit. Weekly reviews for missing links, corrupt families, heavy warning counts, and bloated file sizes help stop minor issues before they snowball into coordination problems. Strong candidates usually don’t speak in general terms here. They can point to the file-size and warning-count limits they enforce, and they can explain what happens when teams go past them.
LOD control is another area where many coordinators stumble. On hyperscale work, LOD targets shift by phase. Coordination packages and fabrication packages need the right level of detail at the right time. If that progression slips, fabrication readiness slips with it. The same goes for phased energization and turnover. Put simply: if trades aren’t modeling to the needed level when it counts, the field pays for it later.
Clash detection in Navisworks or ACC Model Coordination also needs more than a weekly button push. Strong managers structure tests by discipline pair and by zone. They set tolerances based on actual installation limits, not guesswork. They also group clashes into usable issues instead of dumping raw clash totals on trade partners.
The metric that matters isn’t how many clashes the software found. It’s whether open issues are dropping week over week, and whether field RFIs tied to coordination are dropping too.
VDC is the point where the model stops being just a coordination tool and starts shaping field decisions.
With 4D scheduling, teams link model elements to CPM activities in tools like Synchro or Navisworks. That makes it much easier to test whether the planned sequence can actually work in the field. Can two trades work in the same gallery at the same time? Does the duct install window line up with cable tray delivery? Those questions are a lot easier to sort out in a 4D sequence review than in a meeting full of assumptions.
The table below shows how core VDC skills connect to the project outcomes employers care about most:
Prefabrication coordination deserves extra focus. On hyperscale jobs, MEP racks, skids, and modular electrical rooms are often built off-site. That sounds great on paper, but only if the spool drawings and prefab models match field tolerances and delivery sequence. If they don’t, the prefab shows up and doesn’t fit. That kind of rework is exactly what these projects are trying to avoid.
These workflows depend on the software stack covered next.
Technical skill gets someone in the room. Governance and accountability are what keep them effective once the work gets messy.
Employers keep coming back to the same three areas in performance reviews: BEP governance, CDE standards, and issue accountability. Those are the habits that separate strong performers from average ones.
The BEP should be treated like a living standard, not a file that gets written once and ignored. As trade partners join the project, it needs updates. Its rules on file naming, model exchange cadence, and LOD targets need to be enforced. And when standards slip, the BEP should be the basis for the accountability conversation.
The CDE also needs structure people can trust. That means clear folder layouts, clean permission settings, and review workflows that keep the field from working off an outdated model.
Weekly coordination meetings are where leadership is easiest to spot. The best managers run those meetings from the federated model and keep the discussion tied to constructability and access, not just clash totals. They bring superintendents and trade foremen into the room, not only detailers. And they show up with a concrete target, such as:
Decisions should be documented in the CDE and linked to model views. Action items need owners and due dates. Otherwise, the meeting was just talk.
Mentoring coordinators and junior engineers is part of the role too, even if job postings don’t always say it out loud. The manager who can build a team that enforces standards on its own - without being pulled into every single meeting - is the one who can scale across a multi-phase campus program.
Hyperscale BIM/VDC managers lean on a tight group of platforms to keep fabrication, field work, and turnover moving in sync on fast-track, mission-critical projects. Each tool has a clear job. One handles model authoring, another pulls models together for coordination, another manages files and reviews, and another checks whether the planned sequence will work in the field.

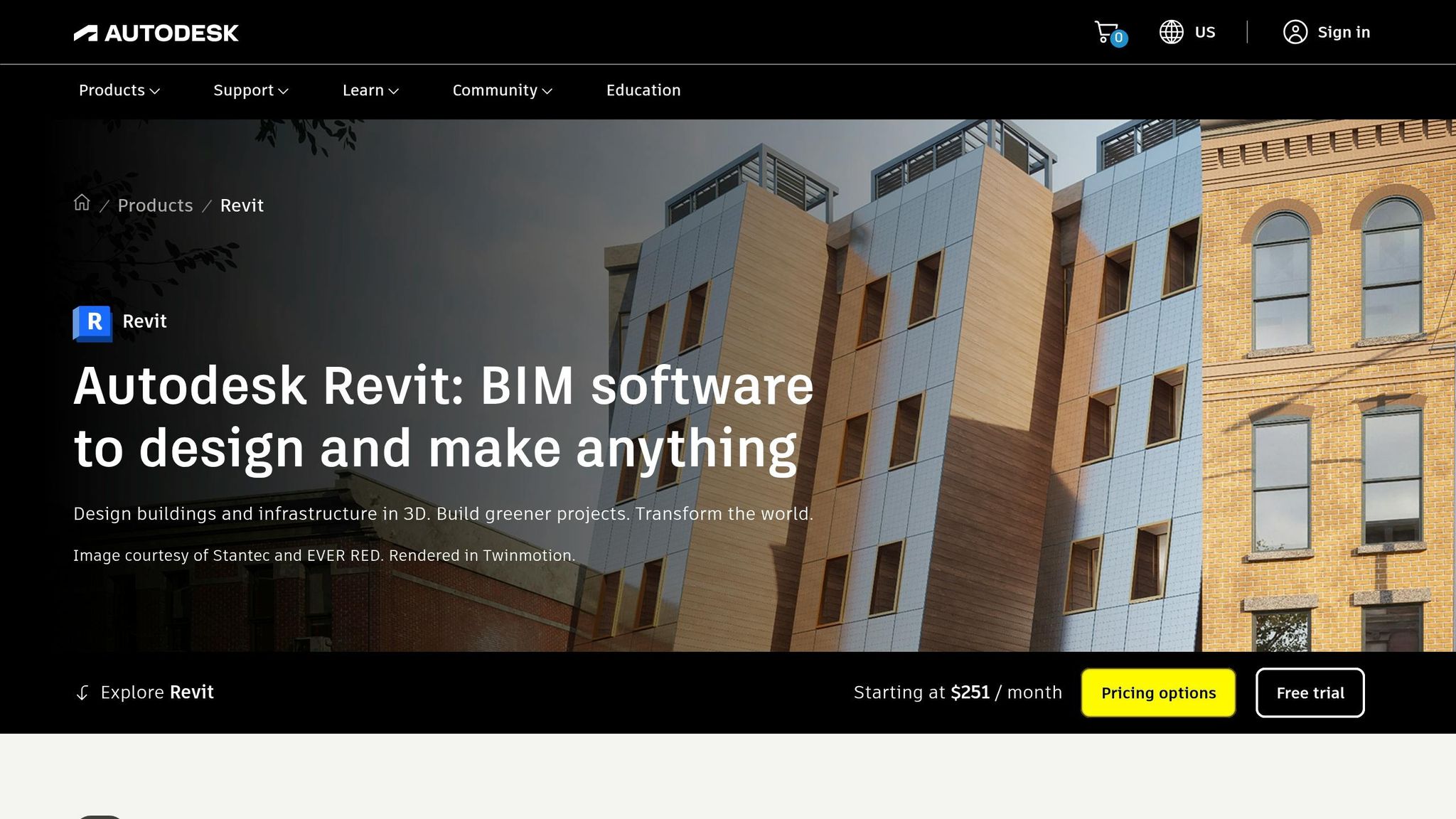

Revit is where discipline models are built. Navisworks pulls those models into a federated view for clash detection and constructability review.
On a hyperscale campus, that usually means separate Navisworks files for each building or zone, plus a campus-wide file for site utilities. That setup keeps coordination easier to manage when teams are dealing with a lot of moving parts at once.
Clash tests are usually set up by discipline pair, such as:
Tolerances are adjusted to catch high-risk conflicts without flooding the team with noise. Issues are then grouped by system, zone, and responsible trade, so the reports lead to action instead of sitting in someone's inbox.
Once the models are coordinated, the focus shifts to version control and issue tracking.

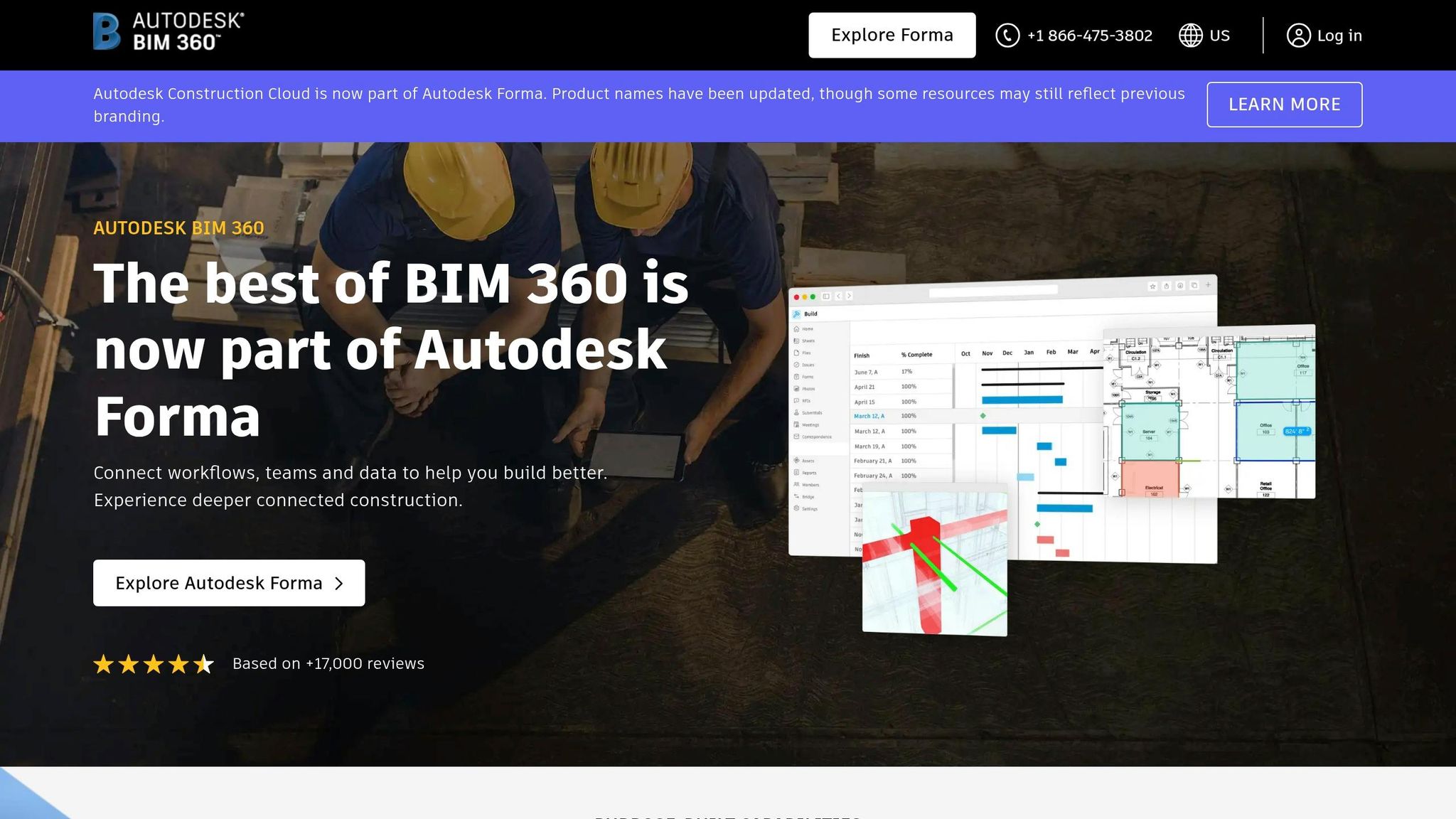

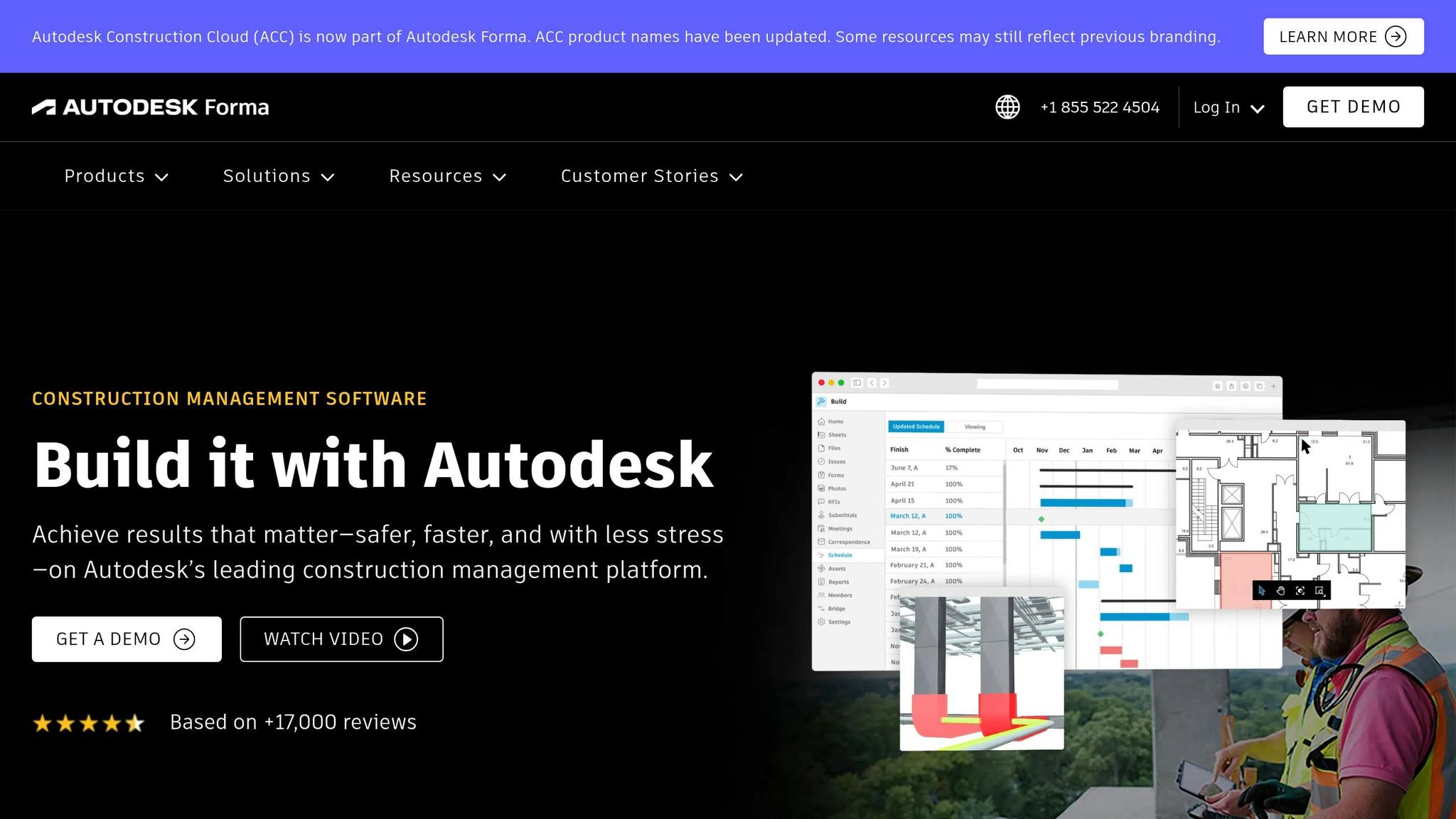

Use ACC/BIM 360 as the CDE to manage versions, permissions, and review gates. It also gives field teams browser-based access to the model, which matters when people need the latest information on site without jumping through hoops.
Revizto is used for issue tracking across 2D sheets and 3D views. It's especially useful in repetitive spaces, where the same clash can show up again and again across multiple zones. On hyperscale jobs, Revizto's issue templates and cloning features help teams track problems across dozens of identical data hall rooms without creating a coordination backlog.
With model control handled, the next step is testing whether the planned sequence can be built the way the schedule says it can.

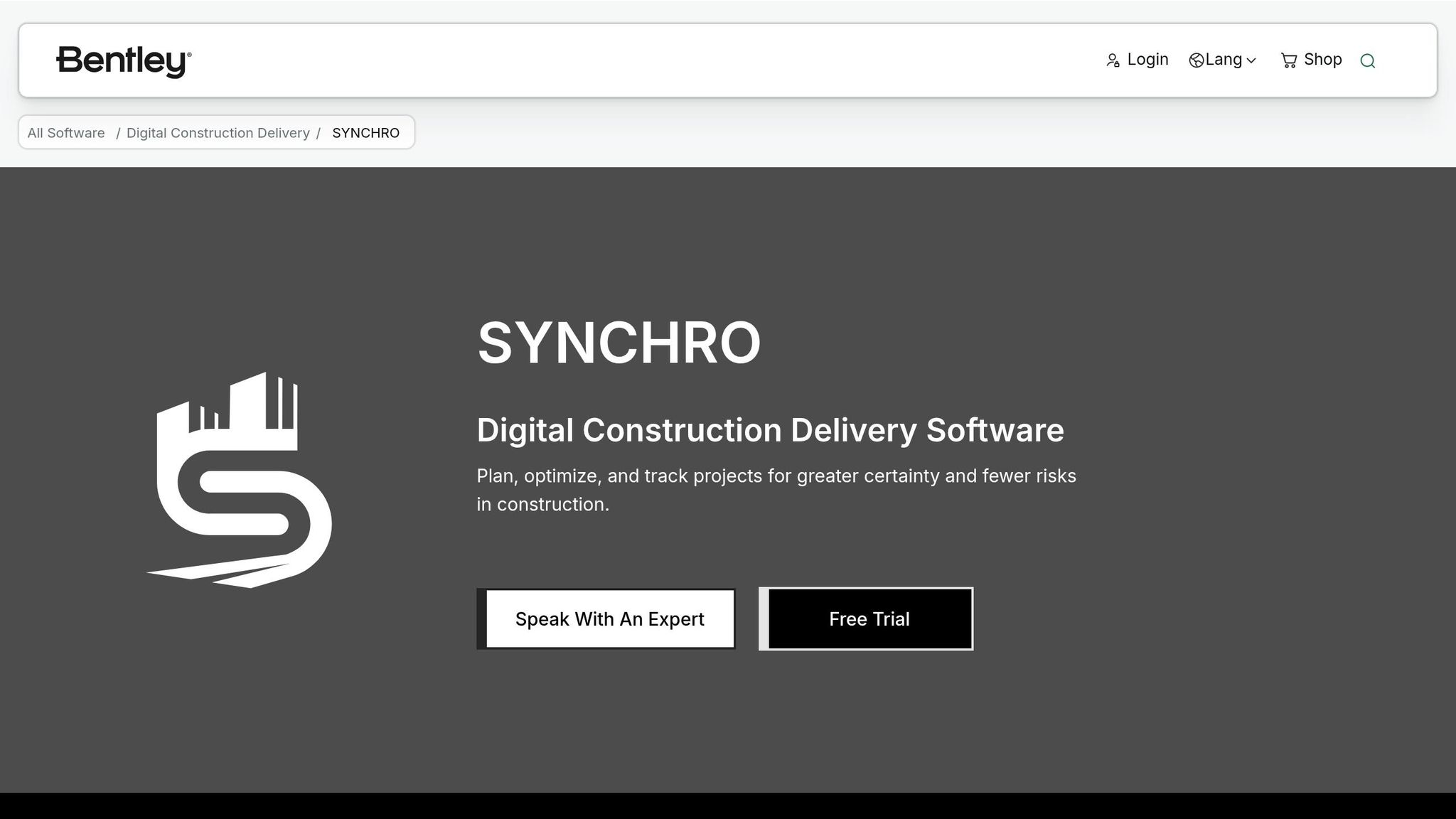

Synchro links the coordinated model to the schedule so teams can test phasing, access, crane movement, and turnover sequencing before work starts. The BIM/VDC manager brings a Navisworks or IFC model into Synchro, lines up selection sets with WBS activity codes, and builds 4D sequences that show install order, trade overlap, and spatial conflicts.
On hyperscale data centers, those sequences are especially helpful when teams need to explain phased turnovers and equipment delivery to owners and operations teams. A schedule on its own can be hard to read. A 4D sequence makes the plan easier to see.
The table below shows where each platform fits in the stack:
In hiring, employers usually treat Revit and Navisworks as baseline skills. ACC/BIM 360 is commonly expected on hyperscale programs, while Revizto or Synchro can stand out on teams that have made those platforms part of their standard workflow.

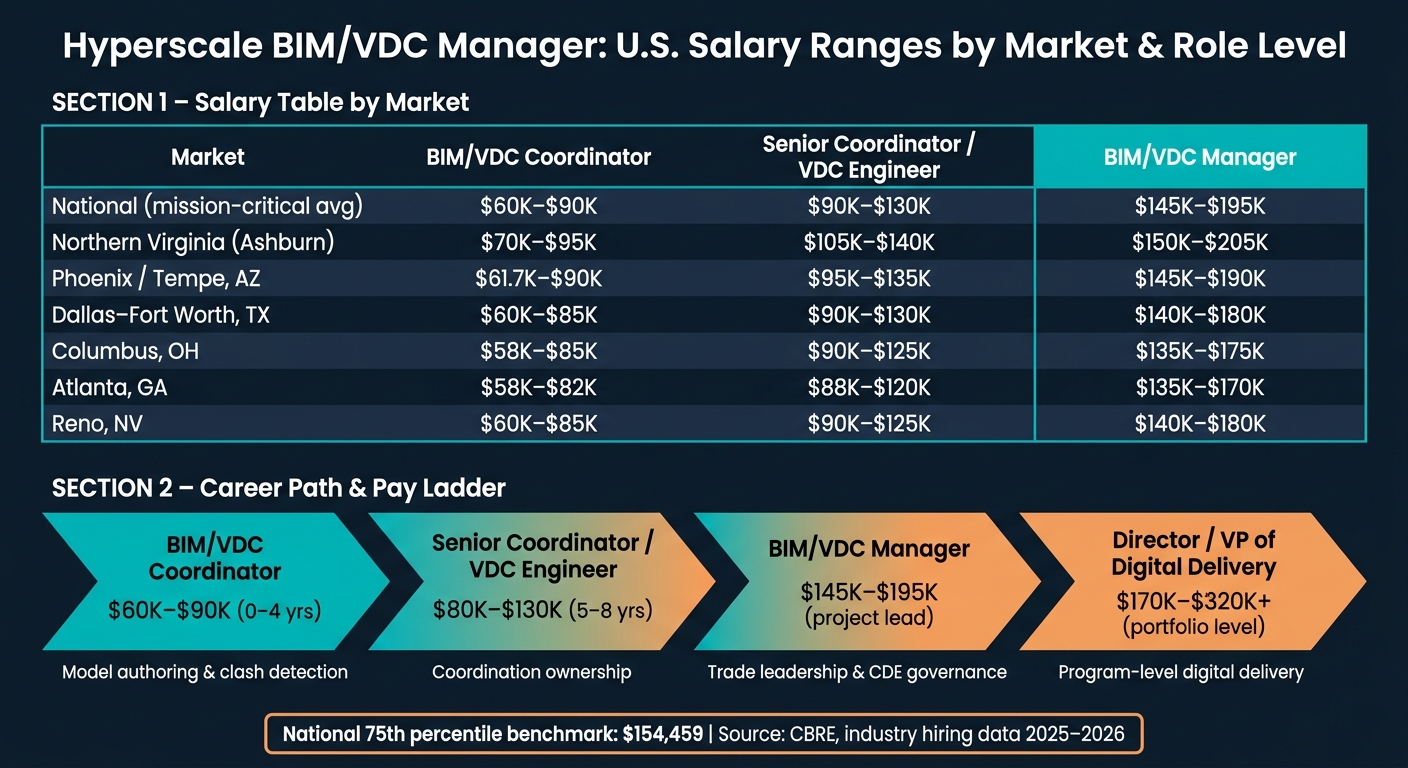

Hyperscale BIM/VDC Manager Salary by Market & Experience Level
In hyperscale hiring, pay tends to follow scope of responsibility. The more a role owns coordination, schedule control, and trade leadership, the more it pays. On hyperscale and mission-critical projects, compensation runs well above general commercial construction at every level, and that gap gets bigger as seniority increases. Employers aren’t just paying for software skills. They’re paying for lower coordination risk, faster project delivery, and tighter trade alignment.
Entry-level BIM/VDC Coordinators with 0–4 years of experience usually earn $60,000–$90,000 base on mission-critical work, compared with about $55,000–$75,000 on general commercial projects.[3][10]
Senior BIM/VDC Coordinators with 5–8 years of experience usually earn $80,000–$110,000 base in mission-critical roles. On large data center and advanced manufacturing programs, that often moves up to $95,000–$120,000+.[8][10][3]
VDC Engineer roles generally land around $75,000–$115,000 across the U.S. Many data-center-focused postings go above $100,000 once the job includes model leadership or schedule integration.[12][13][14][16][15]
At the manager level, the gap becomes more obvious. BIM Managers in general commercial construction often earn about $110,000–$140,000, while mission-critical or data center BIM Managers more often fall in the $130,000–$165,000 range.[1] A VDC Manager leading a hyperscale project usually earns $145,000–$195,000, with senior roles reaching the top of that range or going higher when bonus, travel, or program scope is part of the package.[11][3]
Senior leadership roles like Director of Construction Technology or VP of Digital Delivery on portfolio-level programs can reach $170,000–$320,000+ in total compensation.[3] Contract and embedded program roles can pay $85–$170+ per hour or $18,000–$38,000+ per month on multi-site programs.[11][3]
What pushes pay higher? Project scale, mission criticality, travel, employer type, and program-level ownership all matter. Software fluency helps, but leadership scope is what drives the biggest premium. Strong working knowledge of Revit, Navisworks, ACC/BIM 360, Synchro, and Revizto, paired with proven data center delivery experience, often moves compensation above the national 75th percentile of $154,459.[2][8][9][6]
Some markets simply pay more because the work is stacked up and senior talent is hard to find. Northern Virginia, Phoenix, Dallas–Fort Worth, Columbus, Atlanta, and Reno all command premiums because active hyperscale pipelines are competing for a limited pool of experienced people. In plain English: more projects, fewer proven leaders, higher pay.
The promotion path usually follows the work itself. In most cases, it looks like this: BIM/VDC Coordinator → Senior Coordinator or VDC Engineer → BIM/VDC Manager → Director of Construction Technology or VP of Digital Delivery. Moving up depends on proving that you can own coordination, make model-based decisions, and lead across disciplines.
That next jump into VDC Manager is where many people get tested. It’s no longer enough to be good in the model. You need to lead across teams, coordinate multiple models, manage a CDE, and keep digital delivery milestones on track with very little room for rework.
Credential stacking can help make that move easier. A common path is to build from Revit first, then Navisworks, then add mission-critical credentials like CDCPM or Uptime ATS.[1][7]
A Hyperscale BIM/VDC Manager plays a central role on mission-critical projects. They keep design, coordination, field work, and digital delivery moving in the same direction across trades and systems. That broad role shapes what employers look for when they hire.
In practice, employers look for people who can lead coordination, solve clashes, run VDC workflows, and manage digital delivery with discipline. They also want proof that the person can use tools like Revit, Navisworks, ACC/BIM 360, Revizto, and Synchro in a way that helps the project team do better work. For candidates, that means one thing: show results, not just software knowledge.
The strongest candidates make their impact easy to see. That can mean:
On the employer side, the clearest hiring signal is ownership of the process. If a person can cut rework and help protect schedule reliability, that stands out fast. Those same patterns tend to shape who moves up, too.
Career growth tends to favor leaders who can own coordination, work across disciplines, and make model-based decisions that keep complex projects on track.
Not always. Hands-on experience matters, sure, but you can still get into this space if you have strong BIM/VDC skills and a clear plan for the shift. Employers want people who can work through complex MEP systems, high-density builds, and tight schedules without getting lost in the weeds.
If you're moving over from commercial construction, a coordination role on a data center project is often the best entry point. It gives you a close-up look at hyperscale delivery while helping you build the right experience on the job.
The biggest shift is moving from hands-on production work to leadership.
Yes, you still need strong skills in Revit and Navisworks. That part doesn’t go away. But once you step into management, the job gets bigger. You’re no longer just working inside the model. You’re owning scope, schedule, and team coordination.
That means thinking at the model level, running clash-detection meetings, making system-level calls, and linking digital models to what happens in the field. In plain terms: you’re the person helping turn a coordinated model into work that can actually be built.
A lot of success comes down to handling multi-trade schedules and keeping communication clear across trades, even when the pressure is on. That’s where the role changes most. It’s less about producing and more about leading people, timing, and decisions.
Show measurable results, not just a list of tasks.
For each project, include:
Then tie that project info to clear outcomes. Good examples include clash resolution rate, critical issues tracked and closed, on-schedule spool releases, fewer RFIs, faster commissioning, and better labor productivity.
This matters because numbers tell the story fast. Saying you supported coordination is fine. Saying you helped drive 95%+ clash resolution before install or kept spool packages issuing on schedule hits much harder.
You should also show how the work got done. Briefly connect results to the tools and field workflows behind them, such as:
The goal is simple: make it easy for the reader to see the scale of the project, the way it was delivered, and the impact you had on cost, schedule, and field execution.
