If you want the short answer: U.S. structural technician pay in heavy industrial construction often runs from about $42,000 to $100,000+ in 2026, and total pay can go much higher with overtime, travel, and per diem.
I’d break it down like this:
Here’s the main point: the more your work affects fabrication, field fit, and multi-trade coordination, the more you usually make. A basic drafter and a technician handling steel details, RFIs, and model clashes may use some of the same software, but they do not sit in the same pay band.
A few numbers stand out:
If I were job hunting in this field, I’d focus on four things first:
A simple career path looks like this: junior drafter → structural/detailing technician → senior/checker → lead detailer or BIM/VDC coordinator → CAD/BIM manager or VDC lead. The jump in pay often comes when you move from drawing production into package ownership, clash work, and field issue support.

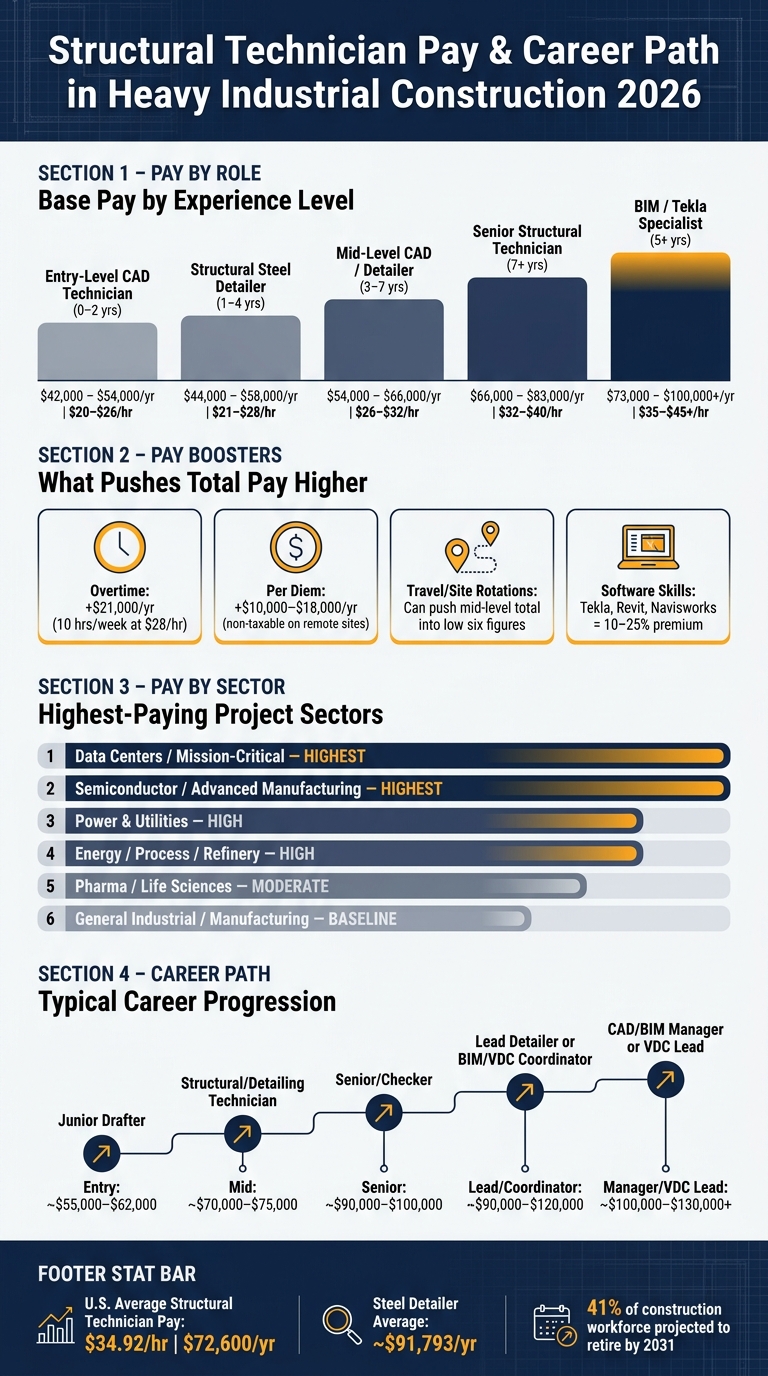

Structural Technician Pay by Role & Sector in Heavy Industrial Construction 2026
Bottom line: if you want better pay, don’t just say you know CAD or BIM. Show that you’ve handled steel detailing, fabrication files, clash detection, RFIs, and live project coordination on data center, power, energy, or advanced manufacturing jobs.
Below, I’ll walk through the pay bands, role types, and the job moves that tend to lead to better offers in 2026.
Structural Technicians turn an engineer’s intent into drawings and models that shops and field teams can actually use. In heavy industrial construction, that usually means steel, concrete, embeds, and the connection points between systems on power, manufacturing, refinery, and data center projects. You see that scope in the drawings they produce and in the coordination work they handle in the field.
The job usually splits into two parts: 2D drafting and 3D modeling.
On the 2D side, technicians create plan, elevation, and section drawings. They organize sheet sets, manage detail callouts and section numbering, and turn sketches or engineer markups into full drawing packages. That often includes:
In 3D, they build and maintain structural models that show beams, columns, braces, connection plates, embeds, and metal decking. Those models feed into shop drawings, erection drawings, bills of material, and CNC/KISS files used by fabrication shops.
Field support is part of the role too. If crews run into missing information or spot a mismatch, technicians help prepare RFIs, mark up clash points, and revise drawings and models after changes are approved. They also help with as-built documentation by recording final field conditions. That matters for retrofits, equipment upgrades, and future structural reviews.
Model coordination is another big part of the work. Structural technicians compare structural models against architectural, mechanical, electrical, piping, and civil models to catch problems before they hit the field. A few common examples:
To sort those issues out, teams use clash reports, coordination views, and interface sketches. On expensive industrial projects, finding those conflicts early can cut rework. The exact mix of tasks depends a lot on the employer.
Titles change based on company type and project scope. Here’s how the work usually shifts:
The software may look similar across these jobs, but the day-to-day focus changes. At engineering firms, the work leans toward design output. At steel shops, it leans toward fabrication. At EPCs and GCs, the job often centers on coordination and field support. That difference matters when candidates pick roles and when recruiters write job descriptions.
AutoCAD is still the baseline for 2D drafting work, including plans, sections, details, layer management, and drawing standards.
Revit is common for 3D structural modeling in both building and industrial settings. It lets technicians place members, foundations, and embeds, then generate coordinated views and schedules from the model.
Tekla Structures plays a major role in steel detailing because it handles connection-level modeling for fabrication, produces shop and erection drawings, and exports CNC/KISS files for automated shop equipment.
Navisworks helps with coordination by giving teams clash detection and multi-discipline model review across structural, MEP, and civil packages. IFC, NWC, and DWG/DXF are often used to move models between platforms.
Technicians who can work across more than one platform - for example, Revit and AutoCAD on the design side, plus Tekla for fabrication-level detailing - can usually handle more of the project lifecycle on their own. In many cases, that broader software range leads to higher pay.
Pay for structural technicians in 2026 can swing quite a bit. The biggest factors are the role itself, how deep your software skills go, and the type of projects you work on. There’s a big jump once someone moves beyond basic drafting into detailing and coordination. Plain 2D drafting usually pays less. Fabrication-ready Tekla work and BIM coordination on mission-critical jobs usually pay a lot more.
Entry-level structural CAD technicians usually start around $20–$26 per hour or about $42,000–$54,000 per year. Mid-level technicians who can run detailing packages on their own and handle basic coordination often land in the $26–$32 per hour range, or about $54,000–$66,000 per year. Senior technicians and BIM-heavy roles with 7+ years of experience often reach $32–$45 per hour, which works out to roughly $66,000–$95,000+ per year. In specialized industrial work and hot markets, pay can climb past $100,000.[9][7][10][5][8][11]
The table below shows how compensation tends to shift by title and experience:
A simple way to think about it: the more your work affects fabrication, field fit, and trade coordination, the more employers tend to pay.
Base pay is only part of the picture, especially on heavy industrial jobs. Overtime can change earnings fast. At $28 per hour, working 10 overtime hours each week can add about $21,000 per year. That means a technician with a base around $58,000 could end up in the $75,000–$80,000 range without changing titles.[6][7][10]
Per diem can make an even bigger difference than many people expect. On remote industrial sites like power plants, greenfield data centers, and energy facilities, daily allowances often fall between $40 and $70 per day. Over a long assignment, that can add $10,000–$18,000 per year in non-taxable income. Some travel packages also include flights, mileage, and housing stipends. On power and energy infrastructure work, that mix of base pay, overtime, and travel-related pay can move total annual value into the low six figures even for mid-level technicians.[3][10][5][12][13]
After experience and travel, project sector is one of the biggest pay drivers. Data centers and semiconductor fabs tend to sit at the top of the range. Why? The work is dense, coordination pressure is high, and schedules are often compressed. In tech-heavy markets like Seattle, job postings for structural CAD/BIM technicians have listed salaries of $100,000+. Structural detailers in San Jose, CA also average nearly 97% above the U.S. national average for the role.[4][11]
Energy, power, and process facilities also tend to pay above the general industrial level. A lot of that comes down to steel-heavy scopes and the need for shop-ready detailing. Pharma and life sciences jobs usually come with a moderate premium. By contrast, standard manufacturing and general industrial projects often sit closer to national CAD technician averages, usually in the mid-$50,000s to mid-$60,000s.
In plain terms, the money usually follows complexity, schedule pressure, and site demands. A technician doing routine drafting on a standard plant job will often earn far less than someone handling Tekla models, steel detailing, and multi-trade coordination on a fast-moving data center build.
After the pay benchmarks, the next question is what pushes offers up.
Pay tends to move up fastest when drafting grows into BIM/VDC coordination that helps the field team do the job with fewer problems. A technician who can work straight in the model, fix clashes, and coordinate across trades isn't just drawing. They're helping the job run better.
That matters because these skills have a direct effect on fabrication accuracy and field installation. BIM/VDC fluency often leads to higher pay since it cuts down on rework and jobsite conflict. And on mission-critical projects, those skills can add a 10% to 25% premium to base salary [1]. When schedules get tight, companies put more money behind technicians who can keep mistakes from snowballing.
Credentials matter most when they show real technical depth, not just box-checking. In mission-critical hiring, adding safety, technical, and project-management certifications can strengthen an offer [2]. On hyperscale and secure sites, though, credentials often work more like a minimum bar than something that makes a candidate stand out.
Travel flexibility can also push total compensation higher through overtime and per diem. Technicians who are open to rotations on remote or secure sites often get better offers because employers put a premium on:
Employer type can shape pay just as much as skill level. The same job title may pay one way at a design firm and another way at a contractor or fabricator. Why? Because the scope, speed, and field pressure aren't the same.
These differences also shape where the role can lead next, especially when someone moves from production drafting into lead coordination.
Pay bands usually spread out as technicians move from production drafting into coordination work. The biggest jumps tend to happen when the job shifts from drawing production to coordination, field issue support, and problem-solving on live projects.
Ranges are approximate and vary by market, sector, and travel demands.
At each stage, the work changes in a pretty clear way. Early on, the focus is drawing accuracy. Then it moves into owning packages, checking model dependability, and handling field issues when something on paper meets the jobsite.
If you want better roles and stronger pay, don’t just list software and job titles. Show the kind of work you’ve handled. Hiring teams often make salary calls fast, so your resume needs to spell out the parts that affect fit and pay: sector experience, software depth, fabrication exposure, and coordination scope.
That means naming work like clash detection, steel detailing lead, or fabrication-level modeling instead of keeping it broad. It also helps to show where you’ve done that work, especially in areas like data centers, energy facilities, utility or industrial plants, and advanced manufacturing. That context tells employers a lot more than a generic “BIM experience” line ever will.
The highest pay tends to show up where the work gets harder: more complexity, tighter schedules, and more coordination risk. That’s why mission-critical data centers, energy and power facilities, and advanced manufacturing often sit at the top of the pay range.
Software skill matters most when it helps someone coordinate across teams and produce fabrication-level detail. For candidates and hiring teams alike, precision matters. Clear proof of sector experience and coordination scope makes it much easier to match the right technical person to the work in front of them.
Move from drafting into coordination by shifting your focus from design output to system integration and site-level execution. Build your BIM and VDC skills, with extra attention on clash detection and sequencing complex MEP systems, so you can catch conflicts before they turn into field rework.
It also helps to deepen your grasp of power and cooling systems, one-line diagrams, and project documents such as RFIs and submittals. When you present your experience, highlight project results and key milestones, not just the drafting work itself.
In 2026, the biggest pay premiums come from BIM and specialized project-delivery tools.
Strong BIM skills can lift pay by 20% to 30%, especially for model-level work, clash detection, and multi-discipline coordination. That’s where firms often need people who can do more than draft. They need people who can spot conflicts early, keep teams aligned, and help the job move with fewer surprises.
Other skills with strong pay bumps include:
Put simply, the more specialized the tool and the closer it sits to project coordination or power analysis, the more likely it is to come with better pay.
Yes. In heavy industrial and mission-critical construction, travel-heavy roles often pay more in total than local jobs.
That extra pay can come from per diem, housing or vehicle support, completion bonuses of $15,000 to $40,000, and steady overtime. The main thing is to compare your total weekly net pay: base rate, overtime, and non-taxed per diem.
Then stack that against your own costs, day-to-day life, and rotation schedule. A job can look great on paper, but the numbers only matter if the setup works for how you want to live.
