If these systems fail, patients can be harmed right away. That’s why I’d sum this topic up like this: healthcare MEP work depends on tight medical gas QA/QC, stable OR positive pressure, and AIIR negative pressure that holds under test and in daily use.
Here’s the short version:
What matters most to me is simple: design intent is not enough. These rooms and systems have to be installed cleanly, tested to code, and proven in the field before patient use.
A quick side-by-side view:
| System | Main Goal | Core Target |
|---|---|---|
| Medical Gas | Safe gas delivery | Correct piping, clean install, pressure test, verification |
| OR Pressurization | Protect the sterile field | Positive pressure, 20-25 ACH, temp/RH control |
| Isolation Room | Contain airborne pathogens | Negative pressure, 12 ACH, 100% exhaust |
If I were reading this for project planning, I’d focus on three things first: early BIM coordination, inspection hold points, and commissioning proof, not just design drawings.

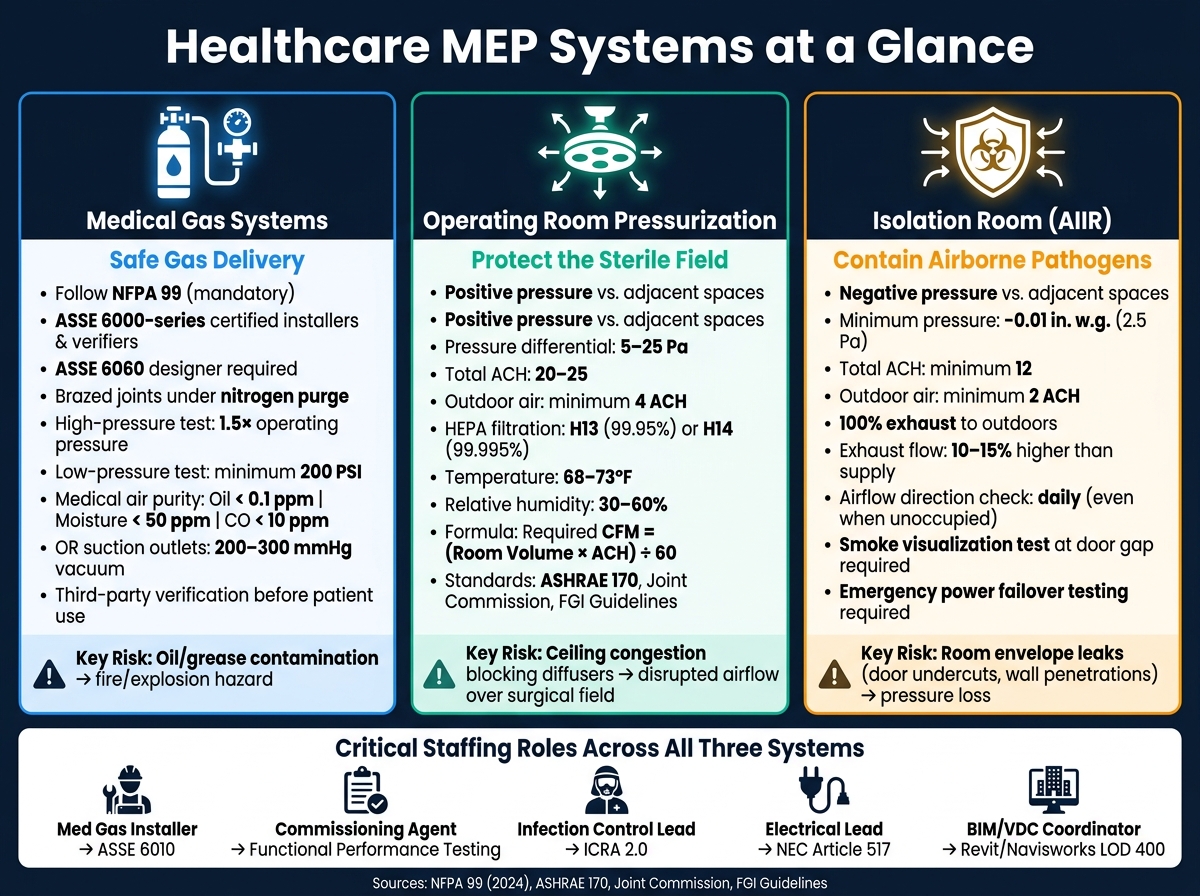

Healthcare MEP Systems: Medical Gas vs. OR vs. Isolation Room Requirements
A hospital medical gas system begins with central source equipment: bulk oxygen tanks, oil-free medical air compressors, and medical-surgical vacuum pumps. From there, Type K or L copper piping carries each gas through risers and branch lines to patient care areas [1].
The system is laid out around a chain of control points, including source valves, main line valves, riser valves, service valves, and zone valve boxes [6]. Service valves isolate each zone valve box during maintenance, and those boxes need to stay visible and easy to reach in case staff need an emergency shutoff [6]. At the point of use, DISS fittings rely on gas-specific threaded connectors so one gas can't be connected where another should go [4].
Alarm systems run alongside the piping network. Master alarms track source equipment status, area alarms cover critical care zones, and source alarms call out failures tied to individual pieces of equipment [1].
In operating rooms, suction outlets usually need 200–300 mmHg vacuum [4].
Above the ceiling, medical gas piping has to share space with ductwork, electrical raceways, sprinkler mains, and structural elements. If that layout isn't worked out early, crews can run straight into clashes that stop installation. In some cases, a shut-off valve ends up hidden behind ductwork and can't be reached anymore [6].
Boom coordination is another major trouble spot. OR ceiling booms pack a lot into a small area, so every trade working overhead has to plan around them [5][6]. In modular settings, medical gas piping also needs early coordination with laminar flow ceilings and electrical trays to avoid space conflicts [5].
A couple of field issues show up again and again because they're easy to miss and costly to fix:
Most Category 1 areas rely on centralized source equipment because ORs and ICUs need redundancy, automatic switchover, and access for service.
Medical gas work leaves no room for sloppy installation. Oil or grease inside an oxygen line can create a fire and explosion hazard. Moisture in a medical air system can lead to corrosion, support microbial growth, and freeze at regulators [4]. That's why NFPA 99 calls for tight controls from start to finish.
"The entire medical air system and all components must be carefully considered to ensure the delivery of safe, quality air while minimizing any chance of contamination or system breakdown." - Lowell Manalo, SmithGroup [6]
Brazing is the step where contamination risk gets especially high. All copper joints must be brazed under nitrogen purge to stop internal oxidation. NFPA 99 also requires dual ports on valves, including zone valves, so teams can handle purging and testing the right way [2][6]. High-pressure piping is tested at 1.5x operating pressure, while low-pressure piping must pass a minimum 200 PSI test [4]. After that, each outlet and inlet is checked for cross-connection errors. Medical air purity also has to be confirmed by an accredited laboratory, with oil content below 0.1 ppm, moisture below 50 ppm, and carbon monoxide below 10 ppm [4].
Before walls or ceilings are closed up, a certified medical gas inspector - not the installing contractor - must witness the initial pressure test and verify labeling. Gas quality analysis and flow-rate verification also have to be finished before the system is used for patient care [2][4]. NFPA 99 (2024) requires an ASSE 6060 medical gas designer or equivalent, and both installers and verifiers must hold ASSE 6000-series certifications [2].
All of that puts a premium on healthcare-experienced MEP coordinators, PMs, and inspectors, especially on OR and medical gas projects where ceiling coordination is already tight.
Once the medical gas layout is set, attention moves to the next big piece in the OR: airflow, room pressure, and everything fighting for space above the ceiling.
ASHRAE 170 requires operating rooms to stay at positive pressure compared with nearby spaces. Put simply, air should move out of the OR, not into it. That flow helps keep contaminated air away from the surgical field. Healthcare projects also need to line up with the Joint Commission, CMS Conditions of Participation, and FGI Guidelines [3].
For ORs, the baseline requirements are tight:
Use Required CFM = (Room Volume × ACH) ÷ 60 to set a realistic basis of design [3].
Hitting those numbers on paper is one thing. Making them work in the field is where the hard part starts.
OR ceilings are some of the most crowded spaces in any hospital. Surgical lights, ceiling booms, diffusers, return grilles, ductwork, and controls all compete for the same overhead area. If changes happen late, a diffuser or exhaust grille can get blocked, and that can throw off the airflow pattern over the surgical field [3].
That’s why boom and light coordination needs to happen early in design development. It cuts down on ceiling clashes and helps avoid rework later [3]. Pressure transducers also need to read the actual pressure difference between the room and the adjacent space. And BAS integration should be planned from day one, so pressure monitoring is built into the controls package instead of bolted on later [3].
The air distribution plan also has to match the pressure relationships in nearby spaces. If that coordination slips, the pressure cascade can become unstable.
Pressure targets don’t mean much unless TAB shows the room can hold them.
Commissioning an OR HVAC system means checking pressure, airflow, filtration, temperature, and humidity before turnover. During TAB, technicians use digital manometers to measure pressure differences at multiple points with the doors closed [3]. If a room can’t maintain positive pressure, the first things to inspect are the door seals, ceiling penetrations, and blocked exhaust vents [3]. Once the room envelope is confirmed tight, flow rates are adjusted and recorded against the design CFM targets.
After balancing, permanent pressure transducers are calibrated against handheld reference instruments and tied into the BAS for constant monitoring. These sensors provide compliance data over time and can trigger alarms if pressure moves outside the allowed range. Temperature and humidity are checked during the same process, and commissioning records are kept for future compliance audits [3].
Getting this right takes healthcare-experienced commissioning agents, TAB technicians, and controls specialists who know ASHRAE 170 and FGI Guidelines [3].
AIIRs use negative pressure to keep pathogens inside the room. ASHRAE 170 calls for at least -0.01 in. w.g. (2.5 Pa) relative to nearby spaces, a minimum of 12 ACH, at least 2 ACH of outdoor air, and 100% exhaust to outdoors [8][9]. In practice, that often means exterior exhaust discharge, with filtration when the design basis calls for it [7][9].
That puts a lot of weight on a few design choices: envelope tightness, exhaust location, and the control sequence. If any of those are off, the room may not hold the pressure relationship it needs.
Anterooms can help by adding a buffer between the isolation room and the corridor. They can cut corridor exposure when people enter or leave. But they also take up floor area, add cost, and make the controls package harder to manage.
Negative pressure can fall apart fast when the room leaks. Door undercuts, wall penetrations, and fixture openings all need to be sealed before commissioning [3][10]. Small gaps may not look like much on paper, but they can throw off room performance in the field.
The mechanical layout matters just as much. Put exhaust high on the wall or at the ceiling, and arrange supply so air moves across the patient bed before it reaches the exhaust [9]. That airflow path helps pull contaminants away instead of letting them drift where they shouldn't.
Startup sequence is another big deal. Exhaust should start before supply so the room doesn't go briefly positive during startup [9]. That short positive moment might only last seconds, but in an isolation room, seconds matter.
Once the envelope and airflow path are set, commissioning has one job: prove the room stays negative. Measure airflow with a flow hood and keep it within ±10% of design [9][10]. Then confirm that exhaust is 10–15% higher than supply, use smoke at the door gap to check that air is moving inward, and calibrate pressure monitors and alarms. Emergency power failover also needs testing [9].
Airflow direction has to be checked daily, even when the room is empty [8]. The Joint Commission notes:
"Failure to properly control ventilation systems remains one of the most frequently cited higher-risk accreditation requirements within the physical environment." [8]
After airflow direction is confirmed, continuous electronic room pressure monitors, pressure transducers, and alarm setpoints are calibrated so both audible and visual alarms trip when pressure moves outside the accepted range [8][9]. Emergency power failover testing confirms that exhaust fans, supply fans, and monitoring systems stay online during a power loss [9][10].
In an occupied hospital, turnover work takes close coordination. Project managers, commissioning agents, and controls technicians have to handle phased construction, ASHRAE 170 documentation, and pressure setpoints without hiding actual pressure loss behind control tweaks [9][3].
Medical gas, OR pressurization, and isolation room design are high-risk MEP scopes. One coordination miss can push back occupancy or, worse, put patients at risk. And because healthcare MEP is much denser than typical commercial work, early coordination and strong field QA/QC have a direct effect on both schedule and compliance.
Compliance runs through the full job, from design to install to turnover. NFPA 99 requires third-party medical gas verification before service. ASHRAE 170 requires pressure relationships to be documented in design and then checked during TAB. Joint Commission standards also call for ongoing documentation and periodic pressure checks.
That only works if the right people are in place from the start. In plain terms: staffing is part of compliance.
Prioritize these roles early:
| Role | Key Credential | Why It Matters |
|---|---|---|
| Med Gas Installer | ASSE 6010 Certification | NFPA 99 compliance |
| Commissioning Agent | Functional performance testing experience | Functional testing and validation |
| Infection Control Lead | ICRA 2.0 Training | Containment oversight |
| Electrical Lead | NEC Article 517 Expertise | Essential power reliability |
| BIM/VDC Coordinator | Revit/Navisworks (LOD 400) | Clash detection |
This labor pool is small. So if hiring slips, schedule risk and compliance risk tend to show up together. In healthcare construction, specialized talent isn't just a staffing issue. It's part of the compliance plan.
Healthcare MEP systems often fail inspection because they don’t meet NFPA 99 rules for medical gas storage, ventilation, and signage.
Some of the most common problems are pretty straightforward, but they can still derail approval:
In plain terms, it’s not just about installing the system. Inspectors also want proof that it works the way it’s supposed to work, under normal conditions and over time.
Coordination for medical gas systems, operating room pressurization, and isolation room design should begin as early as possible, ideally during schematic design.
Starting early helps line up MEP systems with architectural and structural limits, spot clashes before they turn into costly field problems, support compliance with NFPA 99 and FGI Guidelines, and make sure spaces like source equipment rooms are sized properly.
For healthcare MEP teams, ASSE 6060 is the key certification for medical gas system designers. Under the 2024 edition of NFPA 99, medical gas pipeline systems must be designed by someone who holds this credential, or by someone with equal competency recognized by the facility’s governing body.
Teams also need a strong working knowledge of NFPA 99, NFPA 70, and the FGI Guidelines to meet code and compliance requirements across the full design process.
